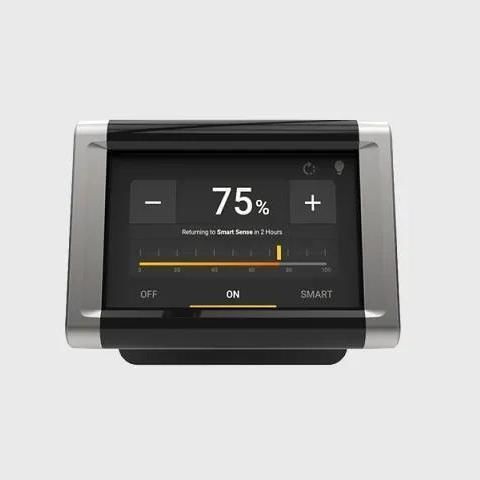

Humidity control unit BAFCON

for ventilationtemperaturewith screen

Overview
BAFCon is a wall-mounted touchscreen controller for managing Big Ass Fans. It allows control of individual fans, grouped zones, or the entire network, and offers speed control, scheduling and SmartSense automation to manage airflow and comfort.

Key features

• Single-point control for up to 24 fans — operate fans individually, by named zone, or run the whole network together.
• SmartSense automatic adjustments — the controller reads temperature and humidity and adjusts fan speed accordingly to maintain desired airflow without manual intervention.
• Scheduling — create up to four schedules per controller to set on/off/Auto modes; schedules are editable at any time.
• Building management integration — RJ45 network connection with support for BACnet and 0-10V for integration with existing BMS.
• Touchscreen UI — intuitive local control and identification of each fan.

Technical documentation available

• Technical specifications (cutsheet)
• Installation guide

Technical specifications

• Form factor: wall-mounted touchscreen controller
• Control capacity: configurable up to 24 fans (variant available for up to 8 fans)
• Control modes: individual fan control, zone grouping, whole-network control
• Automation: SmartSense automatic speed adjustment based on temperature and humidity
• Scheduling: up to 4 schedules per controller, editable at any time
• Connectivity: RJ45 network port
• Protocols supported: BACnet and 0-10V for BMS integration
• UI: touchscreen interface
• SKU: BAFCON
