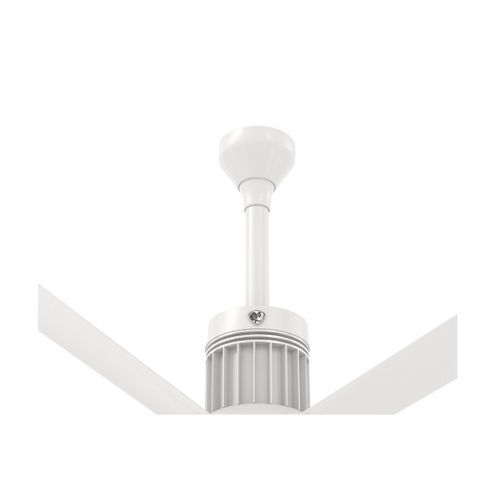

Brushed aluminum ceiling suspension system I6®

for indoor usefor outdoor usewhite

Overview
I6 downrods are available in six standard lengths to position ceiling fans at recommended blade heights (typical target: 8–9 ft / 2.4–2.7 m).

Compatibility & Installation
Each downrod ships with a full hardware kit to hang and install one fan. Compatible with flat and sloped ceilings up to 33°. For 84 in. outdoor fans, a 12 in. downrod is the minimum. Downrod mount required; not compatible with flush-mount installations.

Available Hardware Finishes

• Black
• White
• Brushed Aluminum
• Oil-Rubbed Bronze

Available Downrod Length Options (selection)

• 6 in. (15 cm)
• 12 in. (30 cm)
• 24 in. (61 cm)
• 36 in. (91 cm)
• 48 in. (122 cm)
• 60 in. (152 cm)

Suggested Ceiling Heights (table)
6 in. — 8–9 ft (2.4–2.7 m)
12 in. — 9–10 ft (2.7–3.0 m)
20 in. — 10–11 ft (3.0–3.4 m)
32 in. — 12–13 ft (3.7–4.0 m)
48 in. — 14–15 ft (4.3–4.6 m)
60 in. — 16+ ft (4.9+ m)

Notes
Each downrod ships with the full hardware kit needed for installation. Use a 12 in. minimum downrod for 84 in. outdoor fans. Not compatible with flush-mount installations.

Technical specifications

• Series / Model: I6® downrods
• Lengths available: 6 in., 12 in., 24 in., 36 in., 48 in., 60 in. (table also references a 7 in. and 20 in. option for recommended ceiling heights)
• Hardware finishes: Black, White, Brushed Aluminum, Oil-Rubbed Bronze
• Included: full hardware kit to hang and install one fan
• Ceiling slope compatibility: up to 33°
• Mount requirement: downrod mount required; not compatible with flush mount
• Minimum for 84 in. outdoor fans: 12 in.
• Price range shown on page: $75.00 - $175.00 (USD)
• Product SKU: I6-DOWNRODS
