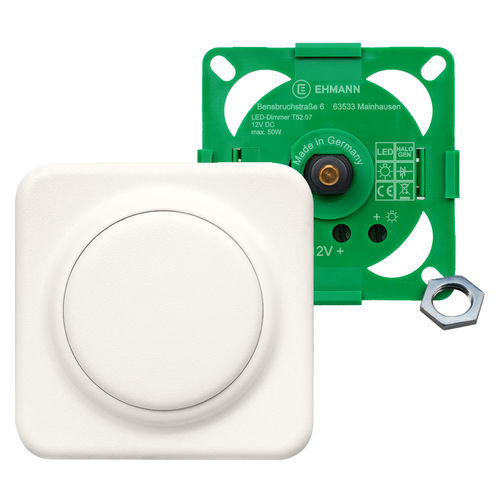

Panel-mount dimmer T52.07
Add to favorites
Compare this product
Characteristics
- Assembly
- panel-mount
Description
Product information – Ehmann 12 Volt LED dimmer T52.07 white
Features and application
Furniture recessed dimmer suitable for flicker-free dimming of dimmable 12 V LED lamps, 12 V incandescent and halogen lamps, LED modules and strips with limiting resistors. Working principle: PWM (pulse-width modulation), with push-toggle switch. The dimmer is intended for installation in furniture or other device boxes (caravan, motorhome, solar garden shed). Connection range (per terminal): wires from 1x 1,5 mm² to 2x 2,5 mm². Metal shaft Ø 4 mm with fine detents. Compatible with all 55x55 mm switch programs. Ehmann advantage: 100% quality control, 5-year warranty, German manufacturer, EMC TÜV tested. Ehmann quality: high-quality workmanship and reliable function.
Safety and warnings
DANGER! Risk of death from electric shock or fire. Installation, connection and assembly must only be carried out by a qualified electrician. Observe all technical instructions and country-specific regulations (e.g. DIN VDE). Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Damaged devices must not be put into operation. Use dimmer only in dry indoor locations. Observe ambient temperature and humidity conditions.
Technical specifications
- 0 - 50 W LED power
- includes single-gang cover
- Color: White
Features and application
Furniture recessed dimmer suitable for flicker-free dimming of dimmable 12 V LED lamps, 12 V incandescent and halogen lamps, LED modules and strips with limiting resistors. Working principle: PWM (pulse-width modulation), with push-toggle switch. The dimmer is intended for installation in furniture or other device boxes (caravan, motorhome, solar garden shed). Connection range (per terminal): wires from 1x 1,5 mm² to 2x 2,5 mm². Metal shaft Ø 4 mm with fine detents. Compatible with all 55x55 mm switch programs. Ehmann advantage: 100% quality control, 5-year warranty, German manufacturer, EMC TÜV tested. Ehmann quality: high-quality workmanship and reliable function.
Safety and warnings
DANGER! Risk of death from electric shock or fire. Installation, connection and assembly must only be carried out by a qualified electrician. Observe all technical instructions and country-specific regulations (e.g. DIN VDE). Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Damaged devices must not be put into operation. Use dimmer only in dry indoor locations. Observe ambient temperature and humidity conditions.
Technical specifications
- Connection: screw terminal
- Installation type: furniture recessed
- Color: White
- Control type: push-toggle switch
- Power range: 0 - 50 W (LED)
- Operating principle: PWM (pulse-width modulation)
- Connection range per terminal: 1x 1,5 mm² to 2x 2,5 mm²
- Metal shaft Ø: 4 mm with fine detents
- Compatibility: all 55x55 mm switch programs
- Warranty: 5 years
