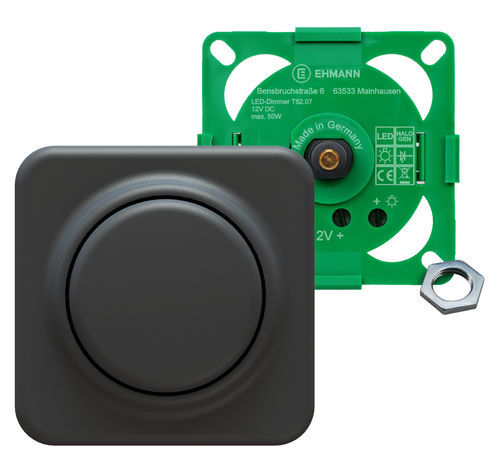

Wall-mounted dimmer T52.07
Add to favorites
Compare this product
Characteristics
- Assembly
- wall-mounted
Description
Product overview
Application
Furniture‑mounted dimmer designed for flicker‑free dimming of dimmable 12 V LED lamps, 12 V incandescent and halogen lamps, LED modules and strips with series resistors.
Operating principle: PWM (pulse‑width modulation). Control via push‑toggle switch.
Connection range (per terminal): cables from 1x 1.5 mm² to 2x 2.5 mm².
Metal shaft Ø 4 mm with fine detents.
Compatible with all 55x55 mm switch systems.
Safety and notice
DANGER! Risk of death from electric shock or fire. Installation, wiring and assembly must be carried out only by a qualified electrician. Observe all technical instructions and country‑specific regulations (e.g. DIN VDE). Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices. Opening the device or other interventions void the warranty. Only operate the dimmer indoors in dry conditions; avoid relative humidity above 80% or ambient temperatures above 35°C. Operate with cover fitted at all times.
Characteristics / Technical specifications
- 0 - 50 W LED power
- Includes single‑gang cover, color: anthracite

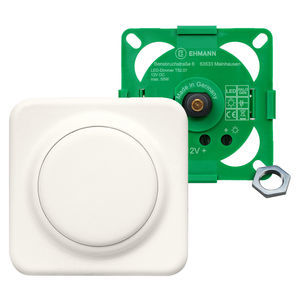

- Variants: anthracite, white
- Suitable for furniture installation (e.g. caravan, motorhome, garden house)
Application
Furniture‑mounted dimmer designed for flicker‑free dimming of dimmable 12 V LED lamps, 12 V incandescent and halogen lamps, LED modules and strips with series resistors.
Operating principle: PWM (pulse‑width modulation). Control via push‑toggle switch.
Connection range (per terminal): cables from 1x 1.5 mm² to 2x 2.5 mm².
Metal shaft Ø 4 mm with fine detents.
Compatible with all 55x55 mm switch systems.
Safety and notice
DANGER! Risk of death from electric shock or fire. Installation, wiring and assembly must be carried out only by a qualified electrician. Observe all technical instructions and country‑specific regulations (e.g. DIN VDE). Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices. Opening the device or other interventions void the warranty. Only operate the dimmer indoors in dry conditions; avoid relative humidity above 80% or ambient temperatures above 35°C. Operate with cover fitted at all times.
Characteristics / Technical specifications
- Model: T52.07
- Item number (SKU): 5230x0700
- EAN / GTIN-13: 4012096009009
- LED power: 0 - 50 W
- Cover color: Anthracite (White variant available)
- Connection: screw terminal
- Installation type: furniture installation
- Control method: push‑toggle switch
- Operating principle: PWM (pulse‑width modulation)
- Connection range per terminal: 1x 1.5 mm² to 2x 2.5 mm²
- Control shaft: metal shaft Ø 4 mm with fine detents
- Compatibility: all 55x55 mm switch systems
- Quality & Service: 100% quality control, 5‑year warranty, EMC TÜV tested
