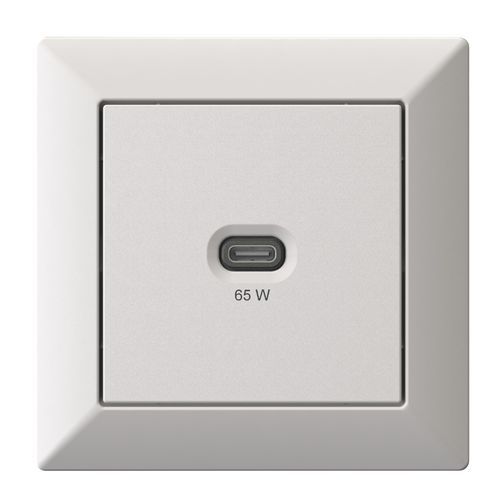

USB charger 6560x0001mw
Add to favorites
Compare this product
Description
Product description
Compatibility and installation
Connection and installation
Safety and operating conditions
Characteristics / Technical specifications
- Connector type: USB Type-C
- Compatible devices: tablets, laptops, phones, smartwatches
- Compatible phone models: all devices with USB-C
- Special feature: fast charging (USB‑C Power Delivery)
- Power: up to 65 W (adaptive power delivery)
- Input voltage: 230 V AC
- Mounting type: flush‑mount
- Included components: USB‑C flush‑mount charging unit, center plate and frame
Compatibility and installation
- Suitable for all standard flush‑mount boxes Ø 65 mm with device screws (installation according to DIN 49073)
- Compatible with 55 mm switch systems (frame inner dimension 55 x 55 mm), e.g. Busch Balance SI, GIRA Standard 55, etc.
- Installation areas: kitchen, living room, bedroom, corridor and other indoor spaces
Connection and installation
- Connection type: screw terminal
- Conductor cross-section: accepts wires up to max. 2 x 2.5 mm² (daisy‑chain possible, also in multi‑gang frames)
- Installation must be carried out exclusively by a qualified electrician
Safety and operating conditions
- Risk of electric shock or fire if installed incorrectly
- Use the charger only in dry indoor environments
- Do not operate at relative humidity above 80% or ambient temperatures above 35 °C
- Operate the device only with cover installed; do not use damaged units
Characteristics / Technical specifications
- Connector type: USB Type-C
- Power (max): 65 W (USB‑C Power Delivery)
- Input voltage: 230 V AC
- Connection: screw terminal
- Conductor cross-section: up to 2 x 2.5 mm²
- Mounting type: flush‑mount (for Ø 65 mm flush boxes, installation according to DIN 49073)
- Frame: with frame (compatible with 55 x 55 mm frame inner dimension)
- Color: matt white (RAL 9010)
- Packaging unit: 1 pc per package
