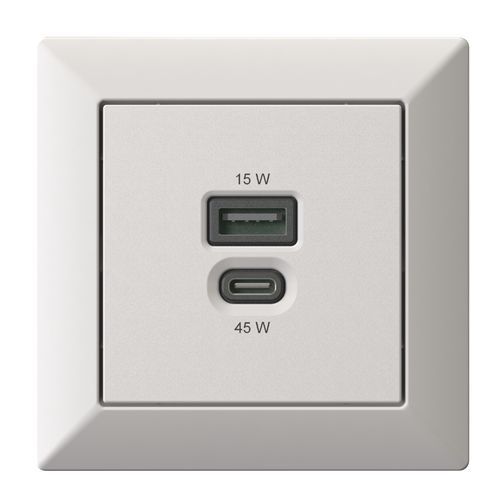

USB charger 6560x0101mw

USB charger - 6560x0101mw - Bodo Ehmann GmbH
USB charger - 6560x0101mw - Bodo Ehmann GmbH
USB charger - 6560x0101mw - Bodo Ehmann GmbH - image - 2
Add to favorites
Compare this product

Description

Product information
  • Connector type: USB Type C & A
  • Compatible devices: tablets, laptops, phones, smartwatches
  • Compatible phone models: all devices requiring USB-C or USB-A charging
  • Included components: USB-C / USB-A combo flush-mount charging unit, central plate and frame
  • Special feature: fast charging (Power Delivery)
  • Input voltage: 230 V AC
  • Mounting type: flush-mount


Description / Notes
  • USB-C + USB-A flush-mount insert with cover and matt-white frame (RAL 9010) for standard flush boxes Ø 65 mm with device screws; installation according to DIN 49073
  • Compatible with 55 mm switch programs (frame inner dimension 55 x 55 mm), e.g. Busch Balance SI (Busch-Jaeger) or Standard 55 (GIRA)
  • 45 W USB-C and 15 W USB-A Power Delivery fast-charge function, suitable as a charging station for laptops, tablets, smartphones, smartwatches and other small electronic devices with USB-C or USB-A ports
  • For conductor connection up to max. 2 x 2.5 mm²; suitable for easy looping in multi-frame installations
  • Variable power output (USB-C, up to 45 W): 5 V / 3 A (15 W), 9 V / 3 A (27 W), 12 V / 3 A (36 W), 15 V / 3 A (45 W), 20 V / 2.25 A (45 W); USB-A (up to 15 W): 5 V / 3 A (15 W). To ensure maximum charging power, use appropriate PD charging cables.


Applications
  • Installation in kitchens, living rooms, bedrooms, hallways and other indoor dry locations


Characteristics / Technical specifications
  • Brand: EHMANN
  • GTIN / EAN: 4012096024804
  • Article number / SKU: 6560x0101mw
  • Model / Type: Flush-mount USB charging station (USB-C + USB-A)
  • Input voltage: 230 V AC
  • USB-C power: up to 45 W (Power Delivery, multiple voltage levels)
  • USB-A power: up to 15 W (5 V / 3 A)
  • Connection: screw terminal
  • Mounting: flush-mount (for standard flush boxes Ø 65 mm, installation according to DIN 49073)
  • Color: matt white (RAL 9010)
  • Frame: with frame (compatible with 55 mm switch programs, frame inner dimension 55 x 55 mm)
  • Packaging unit: 1 pc
  • Max. conductor cross-section: up to 2 x 2.5 mm²
  • Safety / installation note: installation, connection and assembly must be carried out only by a qualified electrician; operate permanently only with cover fitted
