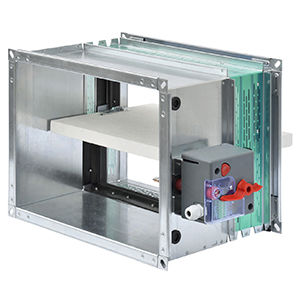

Fire damper MDF 25 L
Add to favorites
Compare this product
Description
CHARACTERISTICS:
Fire dampers marked CE certified UNI EN 15650, UNI EN 13501-3 classified and tested according to UNI EN 1366/2. Installable on ventilation ducts ensure a rapid interruption of the air flow in case of fire. Moved with electromagnet or manual reset thermal fuse.
CONSTRUCTION:
Casing in galvanized steel with intermediate thermal cut. Blade in calcium silicate moved on pivots steel rotation housed on brass bushings. Provided with outer flange for connection to ducts have thermal release device calibrated standard at 72 ° C.
DETAILS:
Operating conditions: Clean air, maximum air speed 10 m/s.
