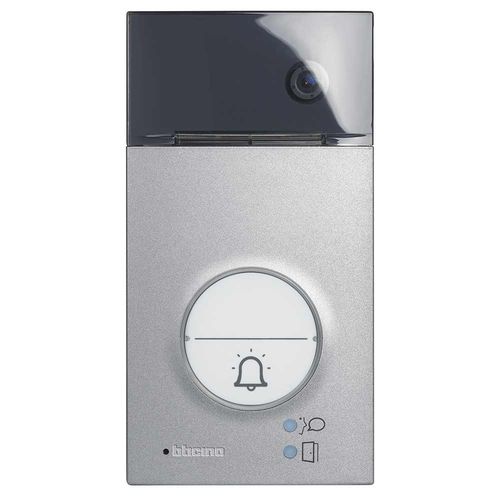

Specifically conceived for villas and single-family houses, Linea 3000 is a stylish, robust pushbutton panel. This solution, even more refined thanks to the Zamak finishes, flawlessly combines technological innovation and design.
2 wire technology;
Zamak front cover;
Flush-mounted installation (with specific accessory);
One call, presetting for a second call;
Protection index IP54;
Protection index against mechanical impact IK10;
Wide angle camera (105°);
Door lock release with key card and clear disc;
Nameplate lit by white LED.
The Linea 3000 range is made up of three pushbutton panels:
Audio, video and video with door lock release proximity reader.
All the pushbutton panels are wall or flush mounted with specific accessories (box 350020 + flush mounted accessory 343061). For wall mounted installation, the accessory rainshield (343051) is available. All the pushbutton panels are preset for 1 or 2 calls.
Wide angle camera
Horizontal and vertical wide viewing field. Easy to use for children and differently-abled people.
Door opening with badge
Door lock release using proximity reader and key card or clear disc.
Preset for 1 or 2 calls
Simple passing from 1 to 2 calls:
- replace the nameplate;
- move the micro-switch on position 2
It is recommended to position the pushbutton panels at a height of 160 – 165 cm (top wire). For use by people with disabilities, the recommended height is 135 – 140 cm (top wire), unless different regulations are specified.
