Panel fastening system TYPE 1 FLUSH

plasticfor insulation panelfor furniture

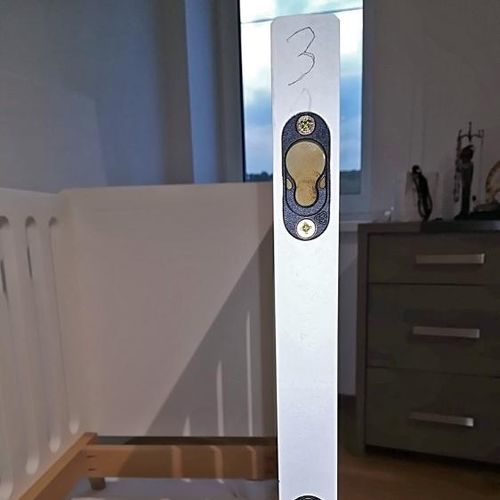

A fully recessed connector solution For applications where panel-to-panel contact is required. It fits a simple oval rebate and can be recessed into the edge of a panel of at least 28mm thick or the face of a panel of at least 18mm thick. Both parts of the connector are moulded from 30% glass filled nylon PA6 - a strong and robust engineering polymer. As a general guide, four Button-fix Type 1 Flush fasteners on a vertical panel will support loads weighing up to a maximum of 100kg (220lbs), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Manufactured in the UK. When you require a strong yet demountable connection between panels with no gap between them, Type 1 Flush is the ideal choice. Typical uses include: Reception and bar counter cladding Furniture construction Slatted walls and ceilings Signage
