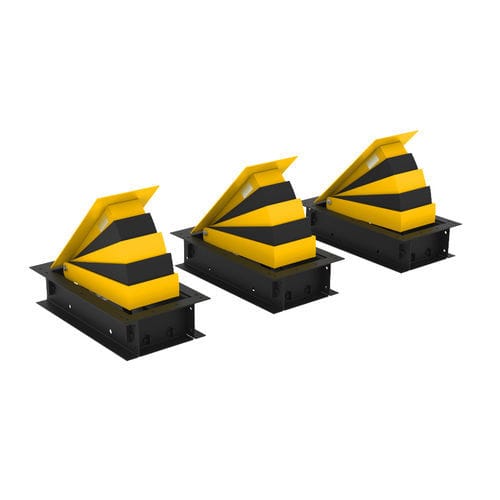

Road blocker road-blocker MRB (SHALLOW MOUNT)

high-resistancebuilt-in

Shallow mounted road blocker for installation on residential sites having deep excavation difficulties (due to existing underground structures such as electric, water, gas fittings). Installation with C30 grade concrete and steel rebar reinforcement. Shallow installation Hydraulic power unit with IP55 water and dust protection rating. Optional IP67. Emergency mode allows blocker to remain in position in event of power failure Residential Hydraulic piston with IP68 water and dust protection rating Optional battery pack allows up to 100 movements Power: Standard 380V AC 3-Phase 50/60 Hz, 2,2 - 11 kW motor (varies depending on blocker size). Operating with 24V DC in case of power failure is optionally available. Control Pack: 24V DC powered PLC control unit is placed in power unit cabinet. 24V DC (opt.12V DC / 220V AC) solenoids. Operating Temperature: -5°C / +55°C (opt. -30°C / +70°C Speed: Standard operation ~3 - 5 sec. (ascend/descend) depending on road blocker dimensions. Fast raise up (EFO, by optional hydraulic accumulator) ~1 - 1,5 sec. and may differ depending on road blocker dimensions for road blockers wider than 4,0 m.
