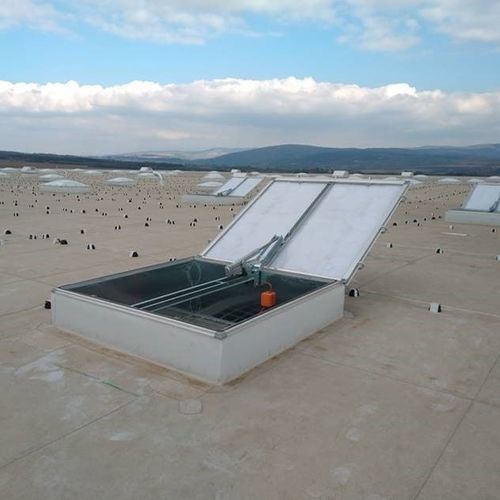

Roof opening SMOKE ARIES®

for ventilation

The SMOKE ARIES® device is the new zenith NSHEV swinging door operating with an electric motor. SMOKE ARIES® is tested and certified according to the EN12101-2 standard both for the evacuation of smoke and heat and for daily ventilation needs. There will no longer be the need to use pneumatic devices, compressed gas cylinders or additional electrical motors dedicated to ventilation. Special safety hooks guarantee the adherence of the frame to the counter frame when the device is closed. The reclosing is managed from the ground floor through external push button panel. This convenient and easy management offers a great advantage for all those cases where there are difficulties to reach the roof for the reclosing of the devices. The periodic surveillance and controls are limited to opening and closing tests from the ground floor without having to replace components such as CO2 cylinders and thermosensitive elements. Constant surveillance of the plant by the conductor of the activity represents a guarantee itself of the correct running of the devices. (such as gas springs) which favor the thrust when opening the devices in case of opening under load (Classification SL1000, SL500, SL250) which may lose strength over the time. Smoke Aries® is an innovative product that was developed and produced within the company Caoduro S.p.A. Like the other company products, it is produced and assembled in Italy and subsequently shipped all over the world. The Smoke Aries® manages to move all the lights with a single motor and a 10,000 N plug.
