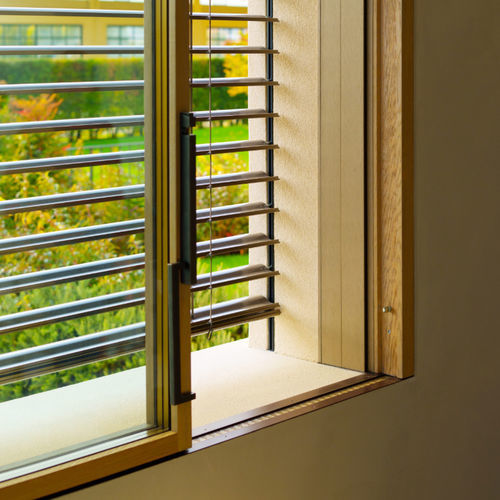

Cord-operated blinds

Venetianfor windowfor patio

Overview
Outdoor brise-soleil with metal slats composed of pre-painted cold-profiled aluminium louvres (94 mm wide). A gasket inserted during profiling reduces noise and improves the darkening effect of the blind.

Construction and operation
The slats feature alternating high-resilience aluminium-alloy sliding pegs at their ends, which engage with the lateral rails. Slats are connected by an adjustment system consisting of plaited polyester-coated carbon fiber wires; the cable is fixed to each slat by stainless steel staples folded into the slat profile.

Base and actuation
The base of the slat pack is formed by a terminal extruded aluminium profile, anodized or painted to match the slats. Slats are raised by a stabilized tape coated in graphite for long-term durability. Down movement is possible with the slats closed and up movement with the slats open; slat angle is adjustable at any position within the stroke.

Guides and sealing
Lateral tracks are made of extruded aluminium (22×24 mm), anodized or polyester powder painted to match the slats. A double polyethylene soundproof gasket is inserted in the tracks to reduce operating noise.

Key features

• Pre-painted cold-profiled aluminium slats, 94 mm wide
• Gasket on profiling for noise reduction and improved darkening
• High-resilience aluminium-alloy sliding pegs between lateral rails
• Adjustment system with plaited polyester-coated carbon fiber wires
• Cable fixed by stainless steel staples folded into the slat
• Terminal extruded aluminium profile anodized or painted to match slats
• Stabilized graphite-coated raising tape for long-term durability
• Adjustable slat positions throughout the stroke (both up and down movements)
• Extruded aluminium lateral tracks (22×24 mm) with double polyethylene soundproof gasket

Characteristics / technical specifications

• Slat width: 94 mm
• Slat material: pre-painted cold-profiled aluminium
• Adjustment cable: plaited polyester-coated carbon fiber
• Cable fixing: stainless steel staples folded into slat
• Terminal profile: extruded aluminium, anodized or painted
• Raising system: stabilized tape coated in graphite
• Lateral track dimensions: 22×24 mm (extruded aluminium)
• Sealing: double polyethylene soundproof gasket in tracks
