Aluminum solar shading

extruded aluminumpainted aluminumalloy

Product overview

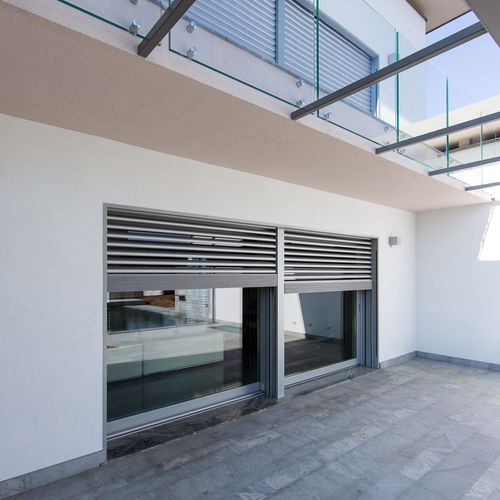

The external aluminium packet brise-soleil without cord features aluminium‑magnesium alloy slats pre‑lacquered with scratch‑resistant paint. Slats measure 97 mm in width and 0.6 mm in thickness, edged on both sides and fitted with gaskets to reduce noise. Each slat is fixed at its ends to the guide pivots by slat holders that are invisible from the outside and designed to be wind‑resistant.

Rails
The system includes self‑bearing lateral rails in industrially anodized extruded aluminium, available in natural finish or painted. Rail dimensions: 85×44 mm. Rails incorporate soundproofing and weatherproof inserts.

Operation and control
The brise-soleil has an automatic closing system in the lowered position and can be stopped at any height. The slats in working position can be tilted to 37°, 45° or 70°. Up and down movements run at a constant pitch; end‑stroke limiters are incorporated in the rails to limit lower and upper final positions. In the closed position the system is locked from the outside and provides significant darkening.

Drive
Movement is electrically controlled by a single‑phase synchronous motor 230 V – 50 Hz – IP44 installed in the technical shutter box.

Projects
Designed for architectural façade and solar‑shading projects (examples available).

Technical specifications

• Slat material: aluminium‑magnesium alloy, pre‑lacquered with scratch‑resistant paint
• Slat width: 97 mm
• Slat thickness: 0.6 mm
• Slat edging: edged on both sides with gaskets for noise reduction
• Slat holders: fixed at slat ends to guide pivots; invisible externally; wind‑resistant
• Rails: self‑bearing lateral rails in industrially anodized extruded aluminium
• Rail dimensions: 85×44 mm
• Rail features: soundproofing and weatherproof inserts
• Tilt angles available: 37°, 45°, 70°
• Movement: constant pitch up/down; end‑stroke limiters incorporated in rails
• Locking: externally blocked in closed position for enhanced darkening
• Drive: single‑phase synchronous motor 230 V, 50 Hz, IP44 (installed in the technical shutter box)
• Automatic closing system: yes; can stop at any height
