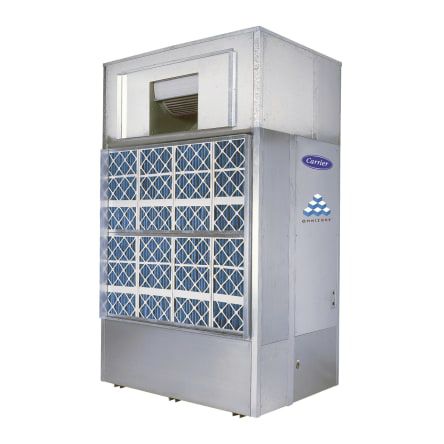

Floor air conditioning unit OMNIZONE™ 50BVT

commercialwater-cooled

The 50BVT indoor water-cooled packaged units are designed for vertical installation, a variety of airflow configurations, and cooling only operation. The modularity of these units provides a versatile and economical approach to comfort conditioning requirements in replacement, renovation, and new construction applications. Performance Features • Capacities of 30, 40, 50, and 60 tons • EER of up to 14.6 • ASHRAE 90.1 compliant • Variety of drive and motor options for low and medium static pressure applications • Coaxial tube-in-tube design condensers • Two (size 034) or four (sizes 044 to 064) electronically and mechanically independent refrigerant circuits • Supply fan housing and wheels designed for quiet, low-velocity operation • Direct expansion evaporator coil • One or two forward-curved, high pressure Class Il fan assemblies • Fully insulated, unpainted, galvanized steel cabinet • Compressors mounted on rubber grommets Reliability Features • Crankcase heater • Scroll compressors • TXV refrigerant metering device • Compressors with high and low pressure cut outs and overtemperature protection • Safely operates without water regulating valves with entering-water temperature as low as 50° F • Steel outer condenser water tubes • Choice of copper or cupronickel inner condenser water tubes • Factory wired and tested before shipment • Tested in accordance with UL Standard 1995 and listed with UL and UL, Canada Maintenance Features • 1-in., 30% efficiency, return-air filters • Insulated divider panel between air-handling and compressor sections for service testing without air bypass • All service can be done through removable panels
