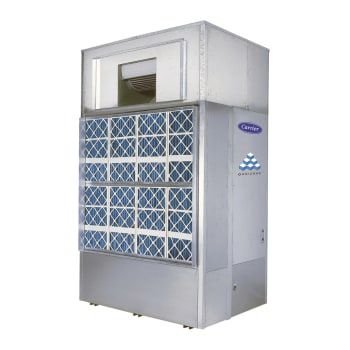

Floor air conditioning unit OMNIZONE™50BVV

packagedcommercialreversible

The 50BVV indoor water-cooled packaged heat pumps are designed for vertical installation, a variety of airflow configurations, and heating/cooling operation. The modularity of these units provides a versatile and economical approach to comfort conditioning requirements in replacement, renovation, and new construction applications. Performance Features Capacities of 30, 40, 50, and 60 tons EER of up to 14.0 ASHRAE 90.1 compliant Variety of drive and motor options for low and medium static pressure applications Coaxial tube-in-tube design condensers Reversing valves for reverse cycle heating mode Two (size 034) or four (sizes 044 to 064) electronically and mechanically independent refrigerant circuits Supply fan housing and wheels designed for quiet, low-velocity operation Direct expansion evaporator coil One or two forward-curved, high pressure Class II fan assemblies Fully insulated, unpainted, galvanized steel cabinet Compressors mounted on rubber grommets Reliability Features Crankcase heater Scroll compressors Microprocessor control system including A2L leak detection safety features TXV refrigerant metering device Compressors with high and low pressure cut outs and overtemperature protection Safely operates without water regulating valves with entering-water temperature as low as 50° F Steel outer condenser water tubes Choice of copper or cupronickel inner condenser water tubes Factory wired and tested before shipment Tested in accordance with UL Standard 60335-2-40 and listed with UL and UL, Canada
