Geothermal heat pump AQUAZONE™50WC

gascommercialoutdoor

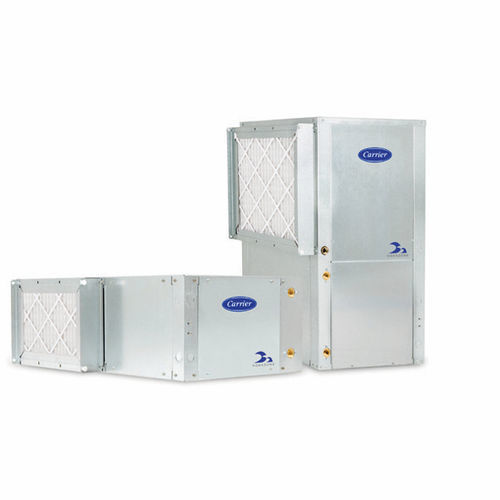

The Carrier AquaZone 50WC water-source heat pump unit with Puron Advance® refrigerant has a compact, cost optimized design in both vertical and horizontal configurations ideal for both new construction and replacement applications. The 50WC includes enhanced serviceability features, a wide variety of factory-installed options, and flexible configurations suitable for boiler tower, geothermal and hybrid water loop systems. The 50WC is also ideally suited for geothermal LEED®1 certification driven projects due to its high efficiency and use of low-GWP refrigerant. Performance Features EERs up to 17.2 Non-ozone depleting, low GWP Puron Advance® refrigerant (R-454B) Capacities of 1/2 to 6 tons Standard PSC (permanent split capacitor) blower motor or optional constant torque ECM (Electronically Commutated Motor) or constant airflow ECM available Rotary compressor or scroll compressor Standard extended range design with operating entering water temperature range of 20° F to 110° F Fully insulated unit with acoustic type insulation Compressor blanket option available for reduced sound levels (024-070) Standard microprocessor controls with optional Carrier TruVu DDC controls Copper or cupronickel heat exchanger MERV 8 and MERV 13 filters available Hot gas reheat and/or hot gas bypass available Waterside economizer available Electrical disconnect available Exceeds ASHRAE 90.1 performance requirements Rated in accordance with AHRI/ISO 13256-1
