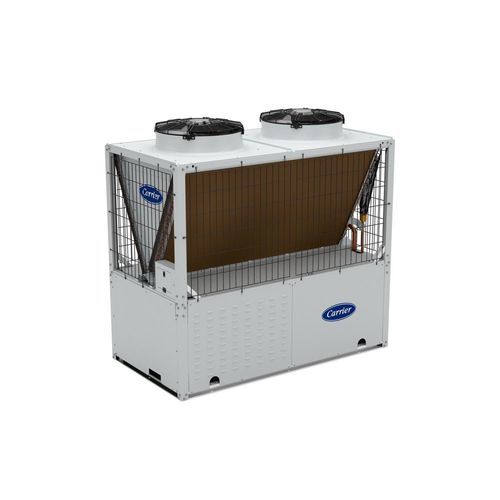

Air/water heat pump AQUASNAP® 30RQM

industrialcommercialoutdoor

Overview
The AquaSnap 30RQM is a compact, air-to-water reversible heat pump engineered for commercial and light industrial heating and cooling applications. Its modular, expandable architecture, advanced variable-speed components and smart control interface simplify installation, commissioning and staged capacity growth while maintaining dependable low-ambient operation.

Key features

• Energy efficient — Compliant with ASHRAE Standard 90.1-2022. Advanced variable-speed rotary compressors and variable-speed fans optimize part-load and full-load efficiency, including reliable operation at low ambient temperatures.
• Easy & compact installation — Quiet operation, compact footprint and flexible modular design; a single controller can manage up to 16 modules to simplify staged expansion and maintenance.
• Supporting sustainability — Uses Puron Advance™ R-454B refrigerant to reduce global warming potential (GWP), enabling reduced reliance on fossil-fuel boilers and supporting electrification strategies.
• Intuitive controls — SmartVu™ touchscreen with remote connectivity. Standard protocols include BACnet/IP, BACnet MS/TP and Modbus. Intelligent diagnostics and advanced defrost control simplify service and uptime management.

At a glance
Compressor Type: Rotary
Refrigerant: R-454B (Puron Advance™)
Cooling Range: 20 - 320 Tons (70 - 1,237 kW)
Heating Range: 263 - 4,222 MBH (77 - 1,237 kW)

Documents & literature available
Technical product data sheets, configuration guides and service manuals are available for model variants to support specification, installation and maintenance.

Technical specifications

• Model: 30RQM
• Brand: Carrier
• Compressor type: Variable-speed rotary
• Fans: Variable-speed
• Refrigerant: Puron Advance™ R-454B
• Cooling capacity range: 20 – 320 Tons (70 – 1,237 kW)
• Heating capacity range: 263 – 4,222 MBH (77 – 1,237 kW)
• Module expansion: Up to 16 modules managed from one compact unit
• Controls: SmartVu™ touchscreen with remote connectivity; standard BACnet/IP, BACnet MS/TP, Modbus
• Certifications / compliance: AHRI Certified, ETL Listed, ASHRAE 90.1-2022 Compliant
• Designed for reliable low-ambient temperature performance
