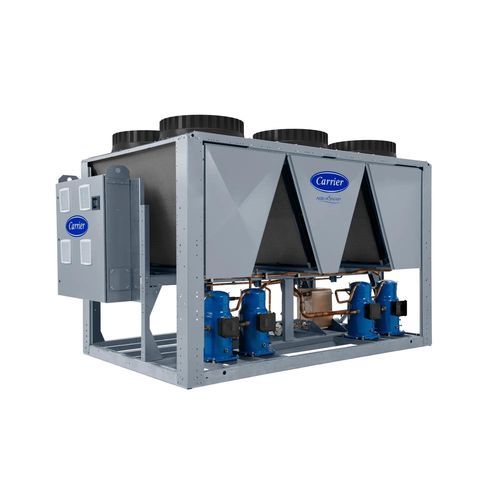

Air-cooled chiller AQUASNAP® 30RC

floor-mountedcommercial

Overview
The AquaSnap® 30RC air-cooled scroll chiller delivers advanced, energy-efficient climate control with Greenspeed® Intelligence for superior part-load performance. Designed for commercial HVAC applications, it features AeroAcoustic™ fan systems for quiet operation, durable microchannel condenser coils, PIC6 intuitive control interface, integrated hydronic pump package options, and flexible installation configurations. The unit is AHRI certified, ETL listed, ISO 9001 certified and seismic compliant.

Key features

• Quiet AeroAcoustic™ Fan System
• Greenspeed® Intelligence for variable-speed efficiency
• Integrated hydronic pump package (factory-installed options available)

Features & benefits (detailed)

• Efficient performance: Achieves EER ratings up to 10.9 and IPLV values up to 19.0 to ensure energy-efficient cooling even during peak operation.
• Advanced reliability: Designed with ASME DX evaporators and a galvanized steel frame for long-term durability.
• Simplified maintenance: Equipped with PIC6 diagnostic controls and permanently lubricated fan motors for reduced upkeep.
• Flexible installation: Offers single- or dual-point electrical connections and factory-installed hydronic pump options; supports remote evaporator/cooler mounting accessories.
• Quiet operation: Incorporates AeroAcoustic™ fans and optional sound-attenuating accessories (e.g., sound blankets, low sound compressor blankets).

At a glance (technical highlights)
Compressor Type: Scroll
Refrigerant: HFC Refrigerant R-32
Capacity Range: 10 - 250 Tons (35 - 880 kW)
PIC6 control interface for diagnostics and service
AeroAcoustic™ fans for reduced noise levels
Optional factory-installed hydronic pump packages
Available accessories for sound reduction, wind baffle, hail guard, condenser trim, remote evaporator mounting, energy management, and controls integration

Documents available (selected)

• Dual Chiller Thermistor Accessory for 30RB060-300, 30XA Fixed Speed..., PDF
• Security Grille Package Accessory for 30XV140-500 and 30RC065-252, PDF
• Hail Guard Accessory for 30RC065-252 and 30XV140-500, PDF
• Condenser Coil Trim Panel Accessory for 30XV140-500 and 30RC065-252, PDF
• Remote Evaporator Mounting Accessory (various models), PDF
• Wind Baffle Accessory for 30RC065-252, PDF
• LonWorks Translator Accessories for 30RC065-252, PDF
• Energy Management Module Accessory for 30RC065-252, PDF
• Ground-Fault Interrupter Convenience Outlet Accessory for 30RC065-252, PDF
• Low Sound Compressor Blanket Accessory (various models), PDF
• 30RC 010-060 Controls, Start-Up, Operation, Service, and Troubleshooting, PDF
• 30RC065-252 AquaSnap® Air-Cooled Chillers and Air-Cooled Chillers with Greenspeed® Technology and Carrier Controller, PDF
• 30RC Guide Specifications (10 to 60 Tons and 60 to 250 Tons) — guide/spec documents (some in DOC/PDF), see product literature
• Limited Warranty for Commercial Equipment, PDF

Technical specifications

• Brand: Carrier
• Model / Commercial denomination: AquaSnap® 30RC
• Compressor type: Scroll
• Refrigerant: HFC Refrigerant R-32
• Capacity range: 10–250 Tons (35–880 kW)
• Energy performance: EER up to 10.9, IPLV up to 19.0
• Control: PIC6 diagnostic and control interface
• Fan system: AeroAcoustic™ fans; permanently lubricated fan motors
• Evaporator: ASME DX evaporators (where specified)
• Frame: Galvanized steel frame for durability
• Installation: Single or dual electrical point connections; factory-installed hydronic pump options; accessories for remote mounting
• Certifications: AHRI Certified, ETL Listed, ISO 9001 Certified, Seismic compliant
