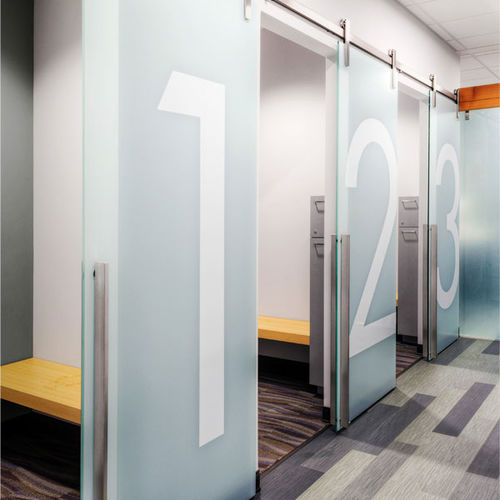

Interior door BARNDOOR FRAMELESS

glassaluminumsliding

Specifications glassBARNDOOR > FRAMELESS (BARN-XF) Top-hung frameless glass panel with single floor guide. Travels along exposed side-mounted track with exposed wheels for a more industrial look. VALUE-ADDED BENEFITS Easy installation: pre-assembled door panel Efficient operation: simple hardware design Minimal visible hardware System durability and long-term integrity Turnkey integrated project services FACILITY DESIGN APPLICATIONS Space division between offices, conference rooms or flex-space, bathrooms. CONFIGURATIONS Single, single + fixed panels to match, side mounted, top mounted, concealed. FUNCTION Top-hung sliding double panel. GLASS TYPES Tempered monolithic. Tempered laminated. GLASS FINISHES Refer to Finish Chart CARVART laminated transparent glass design options available. SURFACES Smooth glass. Etched glass. GLASS THICKNESS Refer to local code and structural requirements Accommodates 3/8" - 9/16" nominal. HARDWARE DIMENSIONS Aluminum top track: 13/16" wide x 2-7/16" high nominal. Vertical clamp trollies: 1-11/16" deep x 13-3/8" wide. HARDWARE MATERIALS/FINISHES Refer to Finish Chart Satin anodized aluminum. Blackened aluminum. WIDTHS — OVERALL MINIMUM/ MAXIMUM RANGE (inches): Glass panels: Minimum 29". Maximum 48". HEIGHTS — OVERALL MINIMUM/ MAXIMUM RANGE (inches): Glass panels: Minimum 36" height. Maximum 120" height above finished floors. MOUNTING FASTENERS Final anchoring decision is client-directed or based on client structural consultant. Mounting fasteners and anchors to be supplied by others. CARVART advisory and coordination available.
