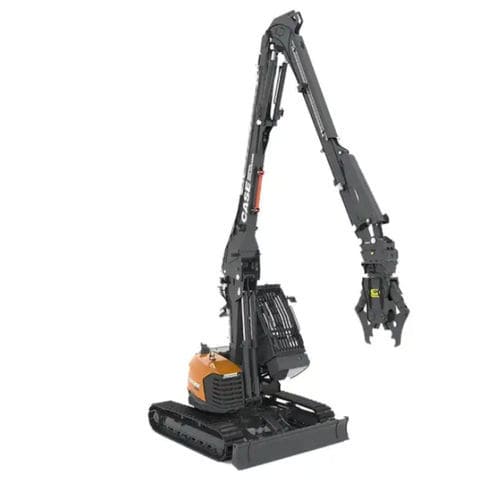

Medium excavator CX135E XRD

crawlerdemolitioncompact

Overview
The CX135E XRD is a compact high‑reach demolition excavator designed for confined urban and transport‑sensitive sites. It delivers up to 14 m working height while maintaining a road‑friendly footprint thanks to a retractable undercarriage and a compact transport width. For safe and precise operation at height, the machine features a 30° tilting cab and two demolition cameras displayed on a dedicated 10.4” monitor.

Key benefits

• Up to 14 m working height in a compact package
• Retractable undercarriage: variable width 2.32–2.92 m for site access and road transport
• 30° tilting cab plus two demolition cameras with 10.4” dedicated display for improved visibility and control at height
• Demolition protection features: demolition guards, armored front glass and overload sensing alarm
• Multiple configuration options: dedicated high‑reach demolition arm and swappable arms including a 2‑piece boom for digging

Technical specifications

• Operating weight: 14.8 t
• Max. power: 73 hp
• Max. height: 14 m
• Max. work height / depth: +14 m / -6 m
• Retractable undercarriage width: 2.32–2.92 m
• Tilting cab: 30°
• Display: 10.4” dedicated display for demolition cameras
• High‑reach configurations: high‑reach demolition arm; option for swappable arms including 2‑piece boom
• Demolition protection: demolition guards, armored front glass, overload sensing alarm
