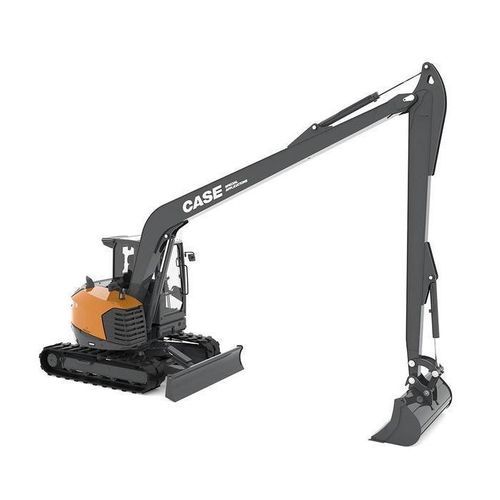

Medium excavator CX120E LR

crawlerlong-rangediesel

Overview
CX120E Long Reach is designed for river cleaning and shoreline operations where maximum reach and low ground pressure are required. It provides 12 m of reach — 3 m more than other Long Reach machines in the same size class — enabling operators to work farther from the bank and cover a larger area per pass.

Design & Practicality

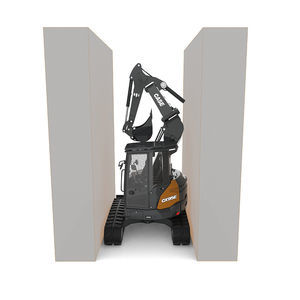

Despite its extended reach, the CX120E LR remains practical to transport and operate: its overall length is close to that of a 15-ton Long Reach machine while delivering much lower ground pressure. Standard transport width is 2.32 m on standard tracks and 2.67 m with 800 mm LGP tracks.

Options & Configurability

• Low Ground Pressure (LGP) track solutions are available.
• Shorter arm lengths can be supplied on request to adapt to terrain and shoreline constraints.

Quick specifications (highlighted)

• Max. reach: 12 m (shorter arm on demand)
• Operating weight: 11.4 t

Technical specifications

• Primary application: river cleaning and operations requiring extended reach
• Maximum reach: 12 m
• Comparative reach advantage: 3 m longer than other Long Reach machines in same size class
• Transport width (standard tracks): 2.32 m
• Transport width (800 mm LGP tracks): 2.67 m
• Operating weight (indicative): 11.4 t
• Low Ground Pressure track solutions: available as option
• Arm length: shorter arm lengths available on request to suit terrain/shoreline constraints
• Packaging: nearly equivalent length to a 15-ton Long Reach but with much lower ground pressure
