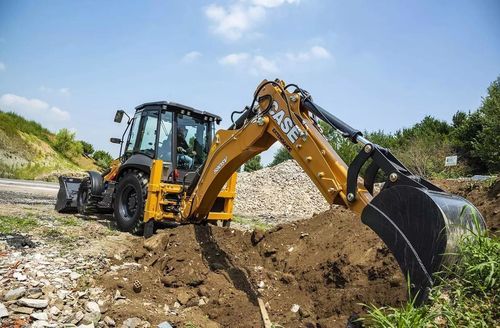

Multi-function backhoe loader 580SV

frontergonomicstandard

Product Overview
Building on the proven legacy of previous generations, the CASE 580SV backhoe loader improves efficiency, operator comfort and productivity. It is powered by a 3.6-litre FPT Stage V engine that preserves best-in-class power and torque density compared with the Stage IV predecessor while meeting stricter emissions standards. An ECO mode is fitted as standard to reduce fuel consumption. CASE and FPT developed an After-Treatment System specifically adapted to backhoe loader duty cycles. The SV-Series also features a wider, more ergonomic cab with improved visibility for the operator.

Key Features

• Engine: 3.6-litre FPT Stage V with dedicated After-Treatment System
• Standard ECO mode to minimize fuel consumption
• After-Treatment System engineered with FPT for backhoe loader applications
• Wider, ergonomic and modern cab providing improved visibility and operator comfort
• Maintains best-in-class power and torque density versus previous Stage IV generation
• Designed for improved efficiency, comfort and productivity on-site

Quick specifications (as shown on page)

• Dump reach at full height: STRAIGHT LOADER ARM: Std bucket 815 mm, 4 x 1 bucket 757 mm; TOOL CARRIER LOADER ARM: Std bucket 844 mm, 4 x 1 bucket 771 mm
• Power: 112 hp

Compatible attachments (examples shown)

• Angle broom - 2600 mm: For sweeping debris, dirt and dried mud on driveways, yards, roads and in warehouses
• Broom bucket: Cleans, sweeps and collects debris into a large-capacity bucket
• Cement mixer: Produces concrete on-site with good homogeneity for unloading in confined areas
• Hydraulic front quick coupler: Enables rapid change of front attachments such as standard bucket, 4-in-1 bucket, pallet forks, angle broom and snow blades

Solutions (highlighted)

• CASE SiteConnect: Improve service efficiency and reduce Total Cost of Ownership through increased connectivity
• CASE Protect: Extended warranty program to help avoid unexpected costs

Technical specifications

• Model: 580SV
• Make / Brand: CASE
• Engine: 3.6-litre FPT Stage V (After-Treatment System developed with FPT)
• Emissions level: Stage V
• Engine features: ECO mode standard to minimize fuel consumption
• Power: 112 hp (as listed)
• Dump reach at full height: Straight loader arm buckets: Std 815 mm / 4-in-1 757 mm; Tool carrier loader arm buckets: Std 844 mm / 4-in-1 771 mm
• Cab: Wider, more ergonomic and modern cab with improved visibility
• Attachments: Compatible with a range of front and rear attachments (angle broom, broom bucket, cement mixer, hydraulic front quick coupler, etc.)
• Specification categories listed on original page: ENGINE, TRANSMISSION, FRONT AXLE, REAR AXLE, BRAKES, TIRES, STEERING, HYDRAULIC SYSTEM, SERVICE CAPACITIES, ELECTRICAL SYSTEM, CAB, NOISE
