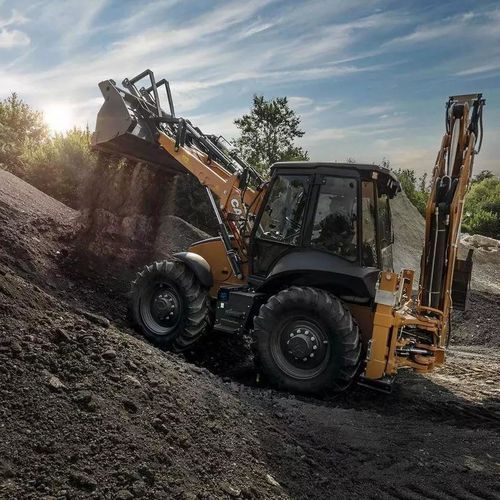

Multi-function backhoe loader 590SV

frontergonomiccompact

Product Overview
Building on previous generations, the 590SV improves efficiency, operator comfort and productivity. Compared with the 580SV it integrates a more powerful Stage V engine and enhanced digging performance: peak power 89 kW (119 hp), maximum torque 460 Nm, maximum digging depth nearly 6 m and maximum operating height above 7 m.

Operator Comfort
The SV-Series cab is wider and ergonomically redesigned to improve operator visibility and usability, supporting longer operating cycles with reduced fatigue.

Quick specifications

• Dump reach at full height — Tool carrier loader arm: Std bucket 844 mm; 4‑in‑1 bucket 771 mm
• Engine power: 89 kW (119 hp)

Compatible Attachments (examples)

• Angle broom — 2600 mm: for sweeping debris, dirt and dried mud on driveways, yards, roads and in warehouses
• Broom bucket: cleans and collects debris into a large-capacity bucket for site or road maintenance
• Cement mixer: on-site concrete production with uniform mixing and controlled discharge in confined areas
• Hydraulic front quick coupler: enables rapid change of front attachments such as standard bucket, 4‑in‑1 bucket, pallet forks, angle broom and snow blades

Technical specifications

• Model: 590SV
• Engine: upgraded Stage V engine (vs. 580SV)
• Peak power: 89 kW
• Maximum torque: 460 Nm
• Power (alternate unit): 119 hp
• Max digging depth: nearly 6 m
• Max operating height: more than 7 m
• Dump reach at full height: Std bucket 844 mm; 4‑in‑1 bucket 771 mm
• Cab: wider, ergonomically redesigned with improved visibility
