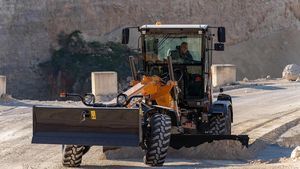

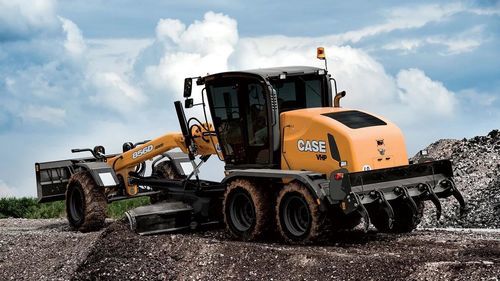

Motor grader 856D

Overview
The 856D grader is designed for heavy grading tasks, combining a high-efficiency FPT N67 engine with a transmission and driveline configured for productivity and fuel economy. It delivers 173 hp in gears 1–3 and 190 hp in gears 4–6, and offers all-wheel drive with creep mode, a roller-mounted encapsulated slewing ring, and predisposition for blade control systems. The machine places operator ergonomics and visibility at the centre with a rear-mounted cab, updated touchscreen display and ergonomic controls. Multiple configurations are available for moldboard width, front blade and rear ripper to match jobsite requirements.

Key features

• FPT N67 engine with electronic management and DualPower
• Power output: 173 hp (1st–3rd gears) and 190 hp (4th–6th gears)
• ErgoPower transmission with smooth automatic shifting
• Fully automatic differential lock
• All-wheel drive (AWD) with creep mode
• Roller-mounted encapsulated slewing ring for extended service life and reduced daily maintenance
• Blade control predisposition (compatible with systems such as Leica and Trimble)
• Rear-mounted cab for improved visibility
• New touchscreen display for machine monitoring and settings
• Ergonomic controls, including joystick controls on EH models
• Multiple customization options: various moldboard widths, front blade, rear ripper

Quick specs
Weight | 16650 kg
Power | 142 kW / 190 hp

Standard equipment

• New touchscreen display as central point for machine information and settings
• New side console on the right with ignition key, electronic hand throttle, cup holder and two USB ports, plus additional storage compartment
• New keypad, easy to reach and clean
• Updated storage compartment on the left with bottle holder and safety net
• New joystick controls for comfortable and precise work and drive (on EH models only)
• Battery main switch
• Cab with two fully swinging doors for both side access, tinted safety glass, front and rear sunshield
• Switchable back-up alarm
• Rear view camera
• Radio
• Rotating beacon
• Caliper disc parking brake operating on transmission
• NEF STAGE V engine with electronic management and 'DualPower'
• DOC & SCRoF exhaust gas aftertreatment
• Cold start
• Control levers for precise and simultaneous moldboard operations
• Front and rear fenders
• Front wheel spindle steering with adjustable steering column
• Air conditioning
• High grade steel moldboard with hardened rounded guides
• Hydraulic and dual-circuit accumulator brake system operating on tandem wheels
• Hydraulically adjustable for 90° bank slope
• Hydrostatic front-wheel drive with E.D.C.V.
• Electronic Drive*
• Control volume and hydraulic differential (Only on 836D AWD and 856D AWD)
• Internal gearing, sealed, backlash-free and self-adjusting slewing ring operating on 360°
• 'Load Sensing' hydraulic system with variable displacement pump
• Moldboard cutting angle hydraulically adjustable
• Oscillating front axle with hydraulic lean adjustment
• Oscillating tandem axle with automatic no-spin differential
• Powershift transmission with 6 forward and 3 reverse speeds, with integrated torque converter
• Rear counterweight
• Road traffic lights
• ROPS/FOPS suspended cab, mounted on rear frame
• Standard cab
• Heated and air suspended seat
• Creep mode (AWD version only)
• CASE 'SiteWatch'

Optional equipment

• Biological hydraulic oil
• Floating valve for moldboard
• Front lights on cab
• Cab roof LED working lights (2 front and 2 rear)
• 2 Cab bottom LED working lights
• Fuel refilling pump (50 l/min)
• Left and right moldboard side plates
• Low profile cab
• Overload clutch on moldboard
• Parallel front blade
• 2 Rear LED working lights
• 5 teeth rear ripper with protection device
• Scarifier on moldboard
• Right moldboard extension
• Tow coupling
• Blade control predisposition (Leica, Trimble)
• Front blade with parallel geometry and mechanical depth indicator
• Front counterweight for 836D and 836D AWD (510 kg)
• Front counterweight for 856D and 856D AWD (763 kg)
• Tool box
• Automatic lubrication system

Technical specifications

• Model: 856D
• Brand: CASE
• Operating weight: 16650 kg
• Engine: FPT N67 (NEF STAGE V) with electronic management and 'DualPower'
• Maximum power: 173 hp (1st–3rd gear), 190 hp (4th–6th gear)
• Rated power shown on page: 142 kW / 190 hp
• Transmission: ErgoPower; Powershift with integrated torque converter (6 forward, 3 reverse)
• Drive: All-wheel drive (AWD) with creep mode; hydrostatic front-wheel drive with E.D.C.V.
• Hydraulics: 'Load Sensing' hydraulic system with variable displacement pump
• Slewing ring: Roller-mounted encapsulated, internal gearing, sealed, backlash-free and self-adjusting operating 360°
• Cab: Rear-mounted cab with improved visibility, ROPS/FOPS suspended cab, air conditioning, heated and air-suspended seat
• Controls: New touchscreen display, new side console with USB ports, joystick controls on EH models, control levers for moldboard operations
• Moldboard: High grade steel moldboard with hardened rounded guides; cutting angle hydraulically adjustable; multiple moldboard widths configurable
• Steering: Front wheel spindle steering with adjustable steering column
• Axles: Oscillating front axle with hydraulic lean adjustment; oscillating tandem axle with automatic no-spin differential
• Aftertreatment: DOC & SCRoF exhaust gas aftertreatment
• Safety & visibility: Rear view camera, switchable back-up alarm, road traffic lights, rotating beacon
