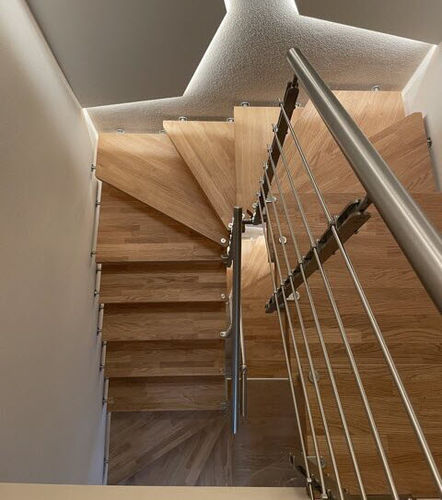

Helical staircase SWING Jazz Inox
contemporarystainless steel frameoak steps

helical staircase
helical staircase
helical staircase
helical staircase
helical staircase
Add to favorites
Compare this product


stainless steel frame
oak steps
without risers
metal railing
Technical characteristics


This realization comes with a 60 mm thick laminated oak woodstep with brushing treatment, natural color water-based varnish and Jazz model railing in stainless steel. The SWING staircase has a self-supporting openstructure, made with suspended steps fixed directly into the wall by means of pins, it requires load-bearing walls with a thickness of min. of 10-12 cm., made of solid bricks, reinforced concrete, poroton or structural hollow bricksi. In the case of non-load-bearing walls it is possible to provide a side strip that can be visible or hidden, which will be used for fixing the steps. SWING’s style is important and elegant. This staircase lends itself to serving private environments and the various finishes available both in wood and in iron parts can offer an excellent result for any style situation, modern, elegant and classic. The modern open staircases from theExcellence collection by Cast Scale change the face of our home. – Available railing models: The Infinity railingis made up of tempered and stratified glass panels made up of 2 sheets with a thickness of 10+10 mm, with fixing studs ø 45 mm in Aisi 304 stainless steel. The Jazz railing in Aisi 304 stainless steel, available in the JazzIron version in painted iron, is fixed laterally to the step. Column for railing made up of 30 × 5 mm plates. Rods ø 8 mm, from n ° 3 to 9 (the modularity of the rods allows to create the protective barrier according to the customer’s tastes and can be modified at will). Tubular handrail ø 42 mm in stainless steel.


No catalogs are available for this product.
