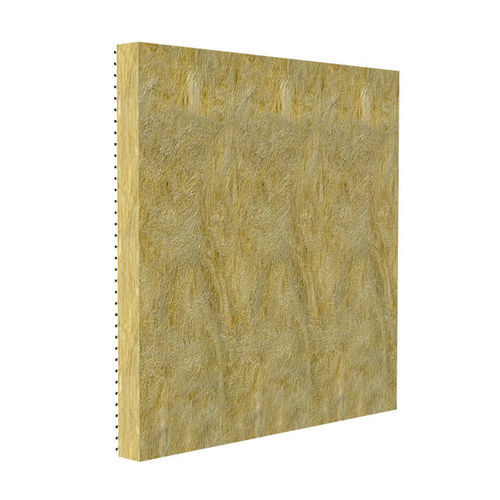

Wall sandwich panel CorePan 15/G

for interiorfor partition wallgalvanized steel facing

Multilayer non-combustible (IMO 2010 FTPC-1, DIN EN 13501) core for use in shipbuilding, construction and architecture or for the production of composite sandwich panels with a wide range of applications. The product is made of high quality stone wool and processed in a multi- stage specialized process by the patented inorganic flame-retardant adhesive LR Cerammatrix 01-50 with endothermic effect giving the final product the following properties: • Low specific gravity • Noninflammability and non-combustibility • No smoke or fuses in a fire • High temperature resistance • Low thermal conductivity • High noise-insulating properties • Immunity to vibration • Moisture-resistant • Good breathability • Handling with conventional cutting tools • Easy disposal If necessary, CorePan 15/15 can be coated with different materials: CPL, HPL, galvanized foil, etc. CorePan 15/15 has high thermal and noise insulation properties with an exceptionally low specific weight of only about 2.9 kg/m?.
