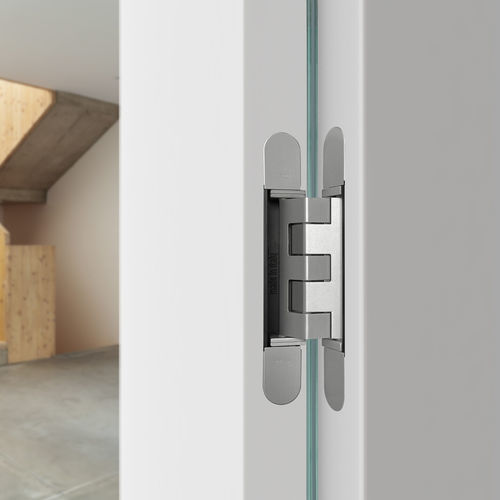

Door hinge 1432Wgalvanized steelconcealedhome
Add to favorites
Compare this product
Characteristics
- Product applications
- door
- Material
- galvanized steel
- Technical characteristics
- concealed
- Market
- home, commercial
- Style
- contemporary
- Opening angle
- 180°
- Height
230 mm
(9.1 in)- Width
32 mm
(1.3 in)- Maximum load
160 kg, 195 kg
(352.7 lb, 429.9 lb)
Description
The new hinge model 1432W has an increased room between the two hinges levers, thus allowing claddings up to 8mm applied both sides. The great load capacity of 160kg, puts few limits to your creativity! Glass, wood, even marble claddings will enrich your ambiences.
Depth: 32 mm
Suitable for doors: Wood, Alluminium, Steel
Minimum door thickness: 38 mm
Fire resistance: n.d.
