Roof sandwich panel COMPOCEL® AL
for ventilated facadefor wallfor facade cladding

roof sandwich panel
roof sandwich panel
roof sandwich panel
roof sandwich panel
roof sandwich panel
Add to favorites
Compare this product


Characteristics

Applications
roof, for ventilated facade, for wall, for facade cladding, for interior, for partition wall, for floor, for false ceiling, for doors
Facing material
2 aluminum faces
Core material
aluminum honeycomb core
Technical characteristics
fire-resistant, IMO MED certified
Fire class
Euroclass A2, Euroclass A2-s1-d0
Width

1,250 mm, 1,500 mm, 2,000 mm
(49 in, 59 in, 79 in)

Length

2,500 mm, 3,000 mm, 7,000 mm
(98 in, 118 in, 276 in)

Thickness

Max.: 25 mm
(0.98 in)

Min.: 6 mm
(0.24 in)

Description

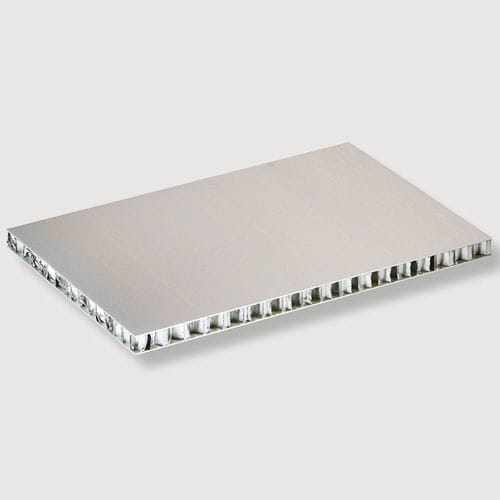

COMPOCEL® AL​ is a sandwich panel with a core in aluminium honeycomb bonded to two skins of aluminium. A panel entirely in aluminum. It offers high mechanical properties, perfect when high rigidity and a low weight are required. Being a panel made of 95% aluminum, the fire reaction properties meet the reference standards for numerous applications. APPLICATIONS COMPOCEL AL panel is used in countless sectors: building to shipbuilding, from railways to interiors, from cabins to lifts etc .... Customers can customize the panel according to their needs as it is a 100% customizable product. PROCESSING - CUTTING, SAWING, DRILLING AND SHAPING These mechanical processes are performed by a programmed CNC. CEL is able to produce customized shapes, holes and processing, according to costumer's specifications. - JOINING AND FIXING Some projects require an anchoring system to fasten panels to other surfaces. Cel offers different options: panels attached to each other by visible or blind rivets and screws; fastening with drilling screws. -SUPERFICIAL FINISHING COMPOCEL AL finishes are selected carefully for indoor and outdoor applications; high quality polymeric paint such as PVDF and FEVE are available on request. CEL offers various surface treatments, in order to resist to heat peaks and temperatures.Overall orders are necessary in case customer needs specific finishes or colours; in this way all aluminium sheets are produced in a batch without any minimal pigment variation.

VIDEO
