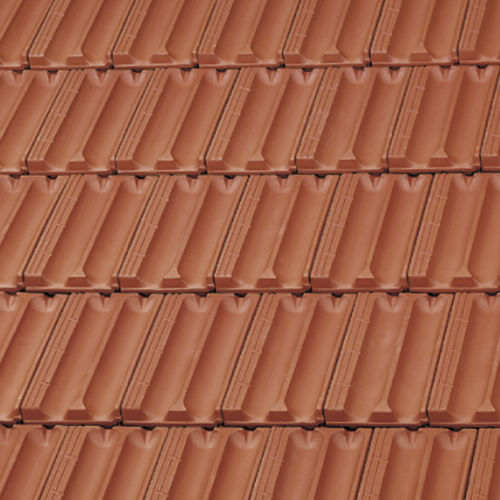

A versatile and easy-to-fit roof tile. As there are bigger pieces, the installation and material costs are consequently reduced, enhanching the elegance and durability of this kind of roof tile.
DATA SHEET
Dimensions
a 466 mm
b 260 mm
c 55 mm
Pieces per m2
11
Weight per piece
3,6 Kg
Longitudinal fit
≈ 403 (+/-5mm)
Transversal fit
225 (+/-1mm)
Double interlocking
The double interlocking -horizontal and vertical- allows the roof to be more watertight, ensuring its impermeability.
FACILITY OF ASSEMBLY
It's traditional format and its installation through jointed connections, gives a perfect adaptation to the job of restoration
COST REDUCTION
It's large format (11 pcs/m2), its packing in 5 units, as well as its palletizing in 180 and 240 units reduce costs in the roof installation
More breakage resistance
Clays composition and perfect press performance make flexion rates higher than even the standard ones
Easy and quick fi xation
It´s traditional shape together it´s installation by crossbond, allows a great adaptation to restoration
LAID METHOD
This interlocking low profile tile can be laid on a continuous frame or deck, or on battens which will be fixed by building a batten counter batten deck or by fixing them directly to the frame.
La Escandella Flat roof tile tile are laid from right to left and can be installed either straight or in a half bond pattern.
All side course (rake) tiles shall be installed with fasteners typical of the field tile installations.
Straight Bond Pattern:
The starter course will begin with a full tile from the eave to the ridge, (allowing a 3.15” (8cm) overhang at the eave).
