Monocrystalline PV panel VOLTfor architectural integrationfor roof
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline
- Other characteristics
- for roof, for architectural integration
Description
Overview

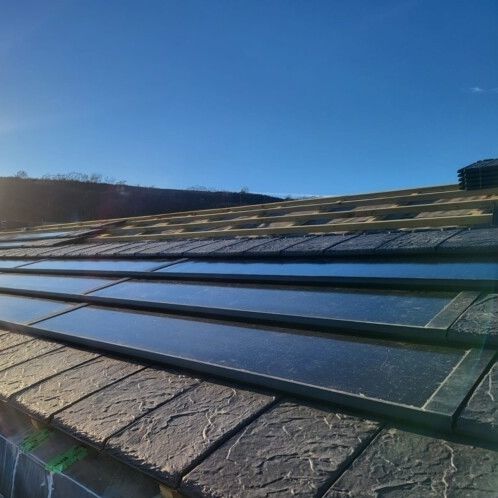

Volt provides a fully integrated photovoltaic roof tile that combines ceramic roof aesthetics with renewable energy generation. Designed for pitched roofs, Volt integrates with Planum ceramic tiles to preserve the architectural appearance while supplying sustainable electricity.
Features
Color options
Data sheet
A: 1,717.3 mm
B: 443.1 mm
C: 49.7 mm
Unit weight: 10.1 kg
Equivalent roof tiles per unit: 7
Number of monocrystalline cells: 38
Cell size: 166 x 83 mm
Laying: Horizontal
Rated maximum power (Pmax): 115 W
Maximum efficiency: 18.8%
Number of solar tiles per kW: 8.7
Batten spacing: EXACTLY 365 mm
Batten size: Min. 25x25 mm / Max. 38x38 mm
STC conditions: Irradiance 1,000 W/m² · Module temperature 25°C · AM = 1.5
Technical specifications
Volt provides a fully integrated photovoltaic roof tile that combines ceramic roof aesthetics with renewable energy generation. Designed for pitched roofs, Volt integrates with Planum ceramic tiles to preserve the architectural appearance while supplying sustainable electricity.
Features
- Increases property value by integrating photovoltaics into the roof surface.
- Easy installation: simple and fast fitting that guarantees waterproofing and allows natural ventilation.
- Integrated design: compatible with Planum ceramic tiles for a uniform roof finish.
- Durable construction: monocrystalline cells with toughened glass engineered for extreme weather.
- Energy efficiency: supports building self-sufficiency and reduces energy costs.
- Low maintenance: monitoring and battery options enable performance tracking and energy management.
Color options
- Color variants on request
- TIBSK BLACKSTONE
- TIYK GALAXY
- TIPK ARDOISE
- TIXK GRIS
- TICEK CENIZA
- TIMK MARRON
- TIRRK ROJO RÚSTICO
- TIBUK BURDEOS
- TIJK ROJO JASPEADO
- TIRK ROUGE
Data sheet
A: 1,717.3 mm
B: 443.1 mm
C: 49.7 mm
Unit weight: 10.1 kg
Equivalent roof tiles per unit: 7
Number of monocrystalline cells: 38
Cell size: 166 x 83 mm
Laying: Horizontal
Rated maximum power (Pmax): 115 W
Maximum efficiency: 18.8%
Number of solar tiles per kW: 8.7
Batten spacing: EXACTLY 365 mm
Batten size: Min. 25x25 mm / Max. 38x38 mm
STC conditions: Irradiance 1,000 W/m² · Module temperature 25°C · AM = 1.5
Technical specifications
- Model: Volt
- Product type: Integrated solar roof tile / Photovoltaic tile
- Dimensions A×B×C: 1,717.3 × 443.1 × 49.7 mm
- Unit weight: 10.1 kg
- Equivalent roof tiles: 7
- Number of monocrystalline cells: 38
- Cell size: 166 x 83 mm
- Orientation: Horizontal
- Rated maximum power (Pmax): 115 W
- Maximum efficiency: 18.8%
- Tiles per kW: 8.7
- Batten spacing required: 365 mm (exactly)
- Batten size compatible: Min. 25x25 mm, Max. 38x38 mm
- Glass: toughened glass resistant to extreme weather
- STC: Irradiance 1000 W/m² · Module temperature 25°C · AM = 1.5
- Available documents: technical catalogue, product sheet, installation guide (PDF)
Catalogs
Volt
8 Pages
Other Cerámica La Escandella products

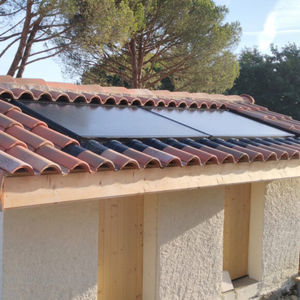

Photovoltaic Solar System
