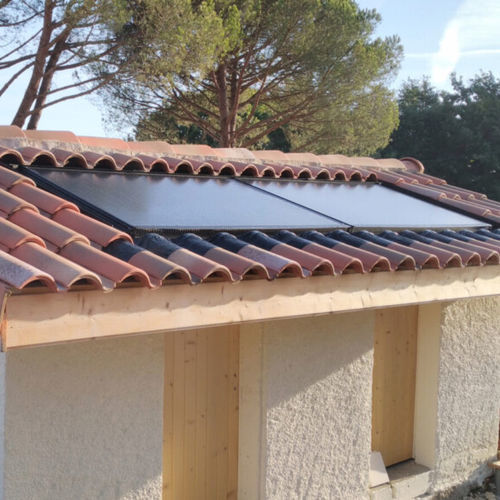

Architectural integration all-in-one photovoltaic system ERI

with monocrystalline panelswith black solar module

Overview

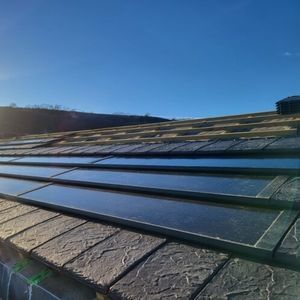

ERI (Easy Roof Integration) is a fixing system for integrating photovoltaic panels into ventilated pitched roofs. The BLACK kit includes the full-black JINKO Tiger Neo panel with a 30-year performance warranty and a 25-year product warranty. The solution is suitable for renovation and new construction with vertical, ventilated installation on roof pitches from 10° to 50°. The system is compatible with the manufacturer's roof tile range to deliver a fully integrated roof and includes a 10-year product and watertightness warranty.

Data sheet
Technical characteristics — BLACK — RED
Overall dimensions — BLACK: 1,952 x 1,556 mm ; RED: 1,952 x 1,556 mm
Panel dimensions — BLACK: 1,762 x 1,166 mm ; RED: 1,762 x 1,134 mm
Technology — BLACK: Mono-crystalline ; RED: Glass
Support — BLACK: Polypropylene ; RED: Polypropylene
Maximum power — BLACK: 455 Wp ; RED: 400 Wp
Maximum efficiency — BLACK: 22.8% ; RED: 20%
Max. power/m2 — BLACK: 227.5 Wp/m2 ; RED: 200 Wp/m2
Units/m2 — BLACK: 0.5 uds ; RED: 0.5 uds
Units/kWp — BLACK: 2.35 uds ; RED: 2.5 uds

Features

• Increase property value: Integration of the photovoltaic roof system raises building value and provides an integrated energy solution.
• Easy installation: Fast, dry vertical installation that guarantees waterproofing without cut-outs; integrated frame bibs; centred modules; natural ventilation.
• Weather resistant: Premium mono-crystalline cells and tempered glass resistant to UV, hail, rust, heat, snow and wind (certified for zone 4 according to NV-65 and Eurocode).
• Low maintenance: Combined solar roof tiles with optional battery and monitoring for performance, storage and energy savings tracking.
• Energy efficiency: Pitched-roof integration improves system efficiency and supports greater building self-sufficiency and reduced energy costs.
• Certificates and warranties: Compatible with roof tiles for full integration; includes 10-year product and watertightness warranty; panel guarantees included in BLACK kit (JINKO Tiger Neo): 30-year performance, 25-year product.

Notes
BLACK: Data refer to the JINKO Tiger Neo full-black panel supplied in the ERI BLACK kit. RED: Data refer to the DHN-48Z16/DG(RR)-380-400W panel supplied in the ERI RED kit.

Characteristics / Technical specifications

• Model / Series: ERI (Easy Roof Integration)
• Overall dimensions (BLACK): 1,952 x 1,556 mm
• Panel dimensions (BLACK): 1,762 x 1,166 mm
• Technology (BLACK): Mono-crystalline
• Support material: Polypropylene
• Maximum power (BLACK): 455 Wp
• Maximum efficiency (BLACK): 22.8%
• Max. power per m2 (BLACK): 227.5 Wp/m2
• Units per m2 (BLACK): 0.5 uds
• Units per kWp (BLACK): 2.35 uds
• Installation: Vertical, ventilated; suitable for roof pitches from 10° to 50°
• Panel warranty (BLACK kit - JINKO Tiger Neo): 30-year performance guarantee, 25-year product guarantee
• System warranty: 10-year product and watertightness warranty
