Purlin CAM070

Product description

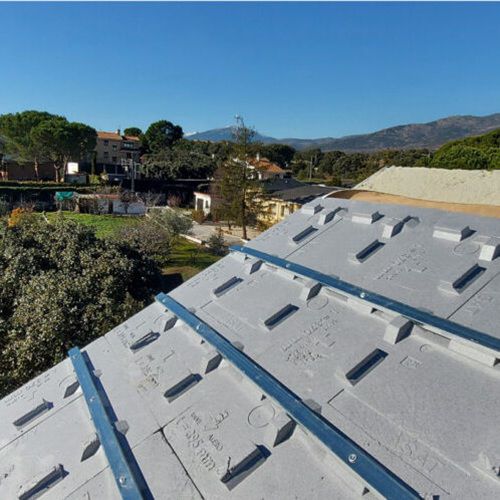

The metal battens are 40 mm-wide U profiles that fit over the protrusions on insulation panels and are mechanically fixed to the supporting structure using screws.

Data sheet
Dimensions: 2 m (length per unit)
Minimum order: 20 m (10 units/pack)

Characteristics / Specifications

• Profile type: U metal batten
• Width: 40 mm
• Thickness / secondary dimension: 15 mm
• Length (per unit): 2 m
• Minimum order: 20 m (pack contains 10 units)
• Fixing method: mechanical fixing to supporting structure using screws
• Application: fits over protrusions on insulation panels
• Material: steel
• Product code / reference: CAM070
