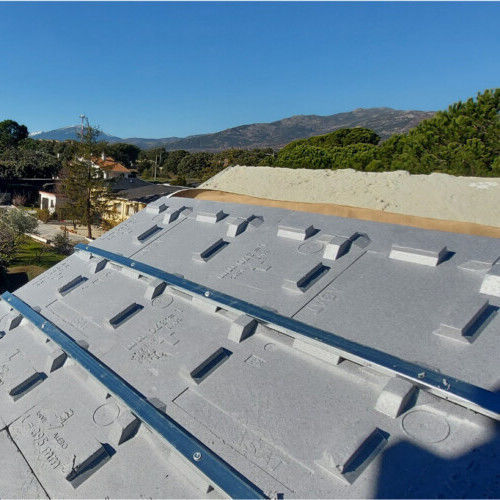

EscandellaSat panels are manufactured from Neopor® expanded polystyrene (EPS) containing graphite particles that absorb or reflect infrared radiation, offering approximately 20% better thermal performance than conventional EPS. When installed on the outside of the roof structure, the panels create a continuous thermal layer without thermal bridges and are compatible with the full range of La Escandella roof tiles except Visum3 and Flat models.

Data sheet
Dimensions*:
A: 1.205 mm
B: 760 mm
C: 60 - 140 mm
Weight / m2: 4.20 - 8.10 Kg
Installation: Horizontal / Vertical
Assembly steps: 370 / 395 mm

Panel thickness - Thermal transmittance (U) - Thermal resistance (R) - Square metres per unit:
60 mm - 0.51 W/m2K - 1.94 m2K/W - 11.44 m2
100 mm - 0.31 W/m2K - 3.23 m2K/W - 7.92 m2
140 mm - 0.22 W/m2K - 4.52 m2K/W - 6.16 m2

The panels are available in two widths, 37.0 cm or 39.5 cm, to suit different La Escandella tile models. Panels must be installed over a continuous supporting structure and a waterproof underlay to ensure watertightness in case of condensation or accidental tile breakage.

Features

• Energy savings: improved thermal performance reduces heating and cooling costs.
• Fast installation: intuitive and quick assembly reduces structural and labour requirements.
• Continuous insulation: low thermal transmittance and installation without thermal bridges, preserving interior volume.
• Waterproofing: double roof waterproofing with excellent micro-ventilation; lateral and longitudinal joints ensure tightness and help avoid condensation.
• Designed for performance: thermal conductivity λ = 0.031 W/m·K to meet insulation requirements.

Technical specifications

• Material: Neopor® expanded polystyrene (EPS) with graphite particles.
• Available thicknesses: 60 mm, 100 mm, 140 mm.
• Thermal conductivity: λ = 0.031 W/m·K.
• Thermal transmittance (U) by thickness: 60 mm → 0.51 W/m2K; 100 mm → 0.31 W/m2K; 140 mm → 0.22 W/m2K.
• Thermal resistance (R) by thickness: 60 mm → 1.94 m2K/W; 100 mm → 3.23 m2K/W; 140 mm → 4.52 m2K/W.
• Square metres per unit by thickness: 60 mm → 11.44 m2; 100 mm → 7.92 m2; 140 mm → 6.16 m2.
• Panel dimensions: A = 1.205 mm; B = 760 mm; C = 60–140 mm.
• Weight per m2: 4.20–8.10 Kg.
• Installation orientation: horizontal or vertical.
• Assembly steps: 370 / 395 mm.
• Panel widths for tile coordination: 37.0 cm or 39.5 cm.
• System compatibility: suitable with the full La Escandella tile range except Visum3 and Flat models.
