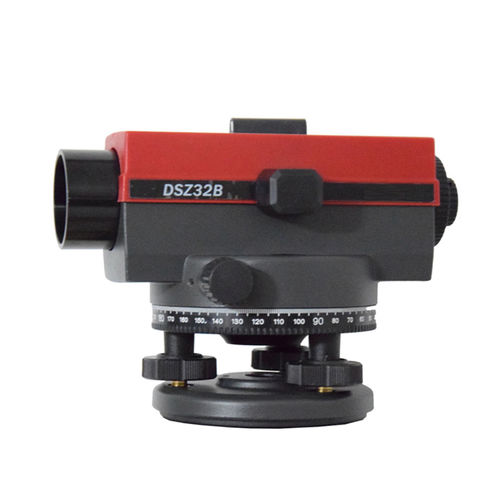

Automatic level DSZ32B opticalrotaryprecision
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Other characteristics
- horizontal, automatic, rotary, precision
Description
DSZ32B with 32x Magnification
Compensator range: ≥±15′
Minimum focus range up to 0.5 meters (1.64 inches)
Leveling accuracy (Standard Deviation for 1km Double-run levelling): 1.0mm
X-shaped wire suspension air-damping
Horizontal circle: 1 degree (1 gon)
Compensator accuracy: ±0.3″
IP54 high-pressure water jet resistant
Tripod Thread: M16 or 5/8″
General
Weight - 1.4Kg (3.09 lbs)
Warranty - 1-year
Tripod Thread - M16 or 5/8″
Protection Class - IP54 dustproof and water spray resistant
Units of Measure - Degrees or gon
Distance Measurement
Range - 0.4m /1.31' (Minimum)~∞
Accuracy
Leveling - 1.00 mm (0.394 in) ---- Standard Deviation for 1km Double-run levelling
Telescope
Magnification - 32x
Field of View - 1° 20'
Diameter of Objective - 36 mm (1.42")
