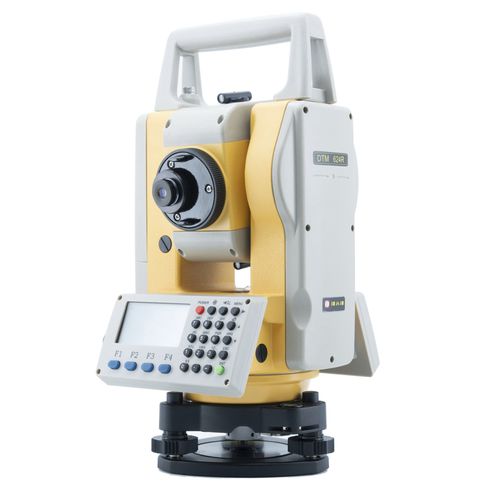

Reflectorless total station DTM624
verticalhorizontaldigital

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital - image - 2

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital - image - 3

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital - image - 4

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital - image - 5

Reflectorless total station - DTM624 - Changzhou Dadi Surveying Science & Technology Co., Ltd. - vertical / horizontal / digital - image - 6

Add to favorites

Compare this product

Characteristics

Type: reflectorless
Operating mode: vertical, horizontal, digital, portable
Other characteristics: high-precision

Description

2" ANGULAR ACCURACY - ACCURATE ENOUGH FOR ANY CONSTRUCTION JOB COMPACT AND LIGHTWEIGHT BUILD FAST MEASURING SPEED PRISM RANGE 3,000 M ACCURACY 2MM + 2 PPM REFLECTLORLESS RANGE 400 M ACCURACY 3 MM + 2 PPM Good conditions (good visibility, overcast, twilight, low ambient light) 3000m REFLECTORLESS MODE - Good conditions (good visibility, overcast, twilight, low ambient light) 400m ACCURACY IN STANDARD MEASUREMENT MODE - Prism - ± (2 mm + 2 ppm·D) Reflectorless - ± (3 mm + 2 ppm·D) MEASURING TIME STANDARD MODE - 1s TRACKING MODE - 0.8s Angle Measurement Accuracy - 2" (0.6 mgon) Reading system - Absolute encoder Unit - Degree/Mil/Gon/V % Minimum increment (Degree, Gon) 2" models 1.0" (0.2 mgon) Circle diameter - 74 mm (2.9 in) Horizontal/Vertical angle - Diametrical/ Single
