Facade cladding sandwich panel

for interiorfor partition wallfor furniture

Product Brief

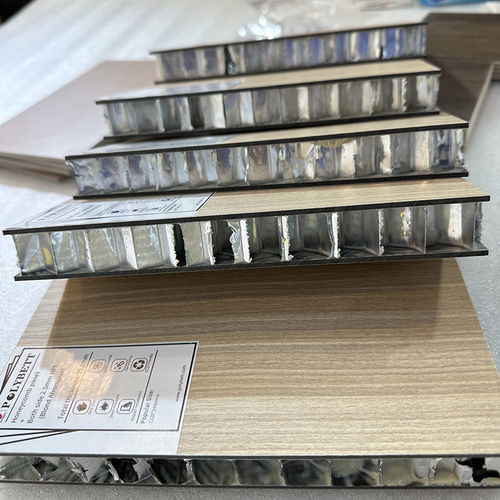

HPL aluminum honeycomb panels combine a decorative HPL surface with a lightweight aluminum honeycomb core to provide rigid, low-weight panels for façades, interior cladding, partitions and furniture applications. The HPL face is pre-coated with a fluorocarbon finish to ensure long-term color stability and weather resistance (up to 20 years under recommended conditions).

Product Information
Product name: HPL aluminum honeycomb panel
Material: HPL + aluminum panel (aluminum honeycomb core)
Standard size: 1220 mm × 2440 mm (customizable)
Total thickness: 6 mm–200 mm
HPL face thickness: 0.6 mm–25 mm
Surface finishes: wood, marble, solid colors, metallic; surface textures: smooth, matte, textured, mirror
MOQ: 200 pieces
Lead time: 25 days (standard)

Composition

• HPL face panel
• Aluminum panel
• Adhesive layer
• Aluminum honeycomb core
• Adhesive layer
• Aluminum panel

Product Advantages

• Lightweight with high stiffness: aluminum honeycomb core reduces panel weight while maintaining structural rigidity for façades and interior systems.
• Fire performance: HPL face available with high fire rating to meet building safety standards without toxic gas emission.
• Durability and moisture resistance: aluminum substrate with weathering film gives 0% water absorption and stable dimensions.
• Acoustic and impact properties: improved sound absorption and shock resistance for partitions, ceilings and furniture applications.
• Easy installation and cost efficiency: prefabricated panel system simplifies installation, reduces on-site labour and shortens project schedules.

Technical specifications

• Material: HPL + aluminum panel
• Standard size: 1220 mm × 2440 mm (customizable)
• Available total thicknesses: 6, 8, 10, 12, 15, 20, 25, 30 mm (range 6–200 mm)
• HPL face thickness range: 0.6 mm–25 mm
• Cover colors/finishes: wood, marble, solid, metallic; surfaces: plane, matte, texture, mirror
• MOQ: 200 pieces
• Lead time: 25 days (standard)
• Environmental grade: E1; formaldehyde emission: 0
