HPL locker PHENOLIC

keyRFIDfor school

Product Brief

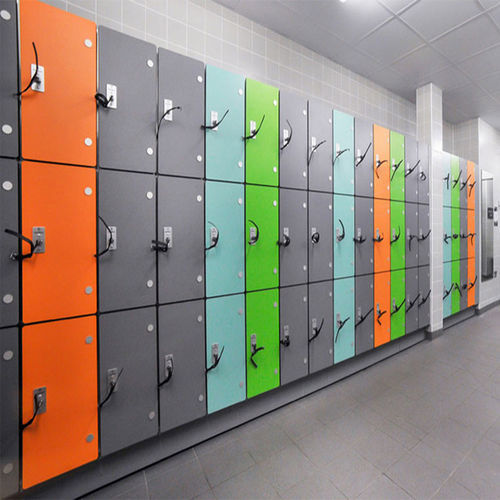

Polybett HPL lockers are made from phenolic compact laminate (HPL) designed for schools, gyms and other humid environments. Compared with steel, wood and plastic lockers, HPL offers improved moisture and fire resistance, a wide range of finishes and long service life, making it suitable for long-term commercial installations.

Materials & Options

• Material: HPL / CDF (phenolic compact laminate or second-generation board)
• Density options: 1200 kg/m3, 1400 kg/m3, 1450 kg/m3
• Thickness options: 4 mm, 5 mm, 6 mm, 8 mm, 12 mm (custom thickness available)
• Finish: solid color, wood grain, marble, floral, metal effects
• Lock options: digital lock, key lock, RFID lock
• Standard size per column: 300W × 400D × 1800H mm (custom sizes available)

Product Table
Name: HPL locker
Material: Phenolic compact laminate (HPL) / second-generation board
Color/Finish: solid, wood grain, marble, floral, metal
Thickness: 4 mm, 6 mm, 8 mm, 12 mm...
Lock: Digital lock, Key lock, RFID lock
Size: Standard per column: 300 × 400 × 1800 mm; other sizes customizable
Typical applications: high-end fitness clubs, gyms, SPA, swimming pools, theme parks, sports centers, store counters, schools, hospitals, residences, supermarkets, hotels

Installation Process (summary)

• 1. Install left & right panels and back panel; connect using M4×12 round head screws and stainless corner fasteners.
• 2. Install partition 1 and top & bottom panels; use M4×25 wafer head self-tapping screws and M4×12 round head screws with corner fasteners.
• 3. Install cork base bottom panel; fix with M4×12 round head screws and corner fasteners.
• 4. Install clothes rail and flange through partition holes; position and fix with M4×12 round head screws.
• 5. Install door panel with hinges; adjust gap between door and side panel.
• 6. Install partition 2 (top, bottom and back) and connect to partition 1 and back panel with M4×25 wafer head self-tapping screws.
• 7. Install door lock and fix with M4×12 round head screws.

Product Details & Features
Compact laminate board suitable for heavy-use environments.
Properties: waterproof, fire-resistant, rust- and moth-resistant, impact and scratch resistant, easy to clean and maintain.
Available in multiple finishes and customizable to project requirements.

Technical specifications

• Brand: Polybett
• Material: HPL / CDF (phenolic compact laminate)
• Density: 1200, 1400, 1450 kg/m3
• Thickness: 4 mm, 5 mm, 6 mm, 8 mm, 12 mm (customizable)
• Standard size (per column): 300 × 400 × 1800 mm (W × D × H)
• Color/Finish options: solid, wood grain, marble, floral, metal
• Lock types: digital, key, RFID
• MOQ: 10 m²
• Lead time: approximately 25 days
