Wall laminate panel

for furniturefor kitchenfor shower

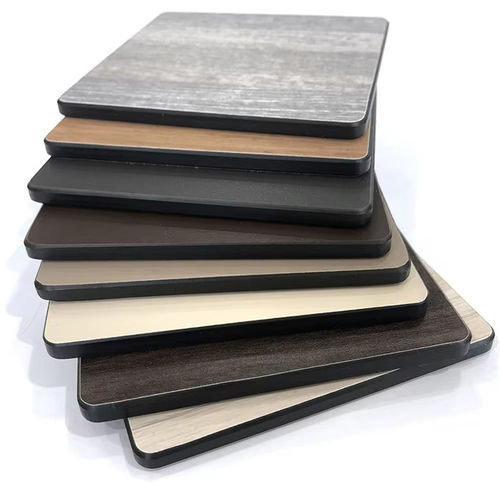

Product overview The POLYBETT® Formica HPL phenolic high-pressure laminate panel is a compact structural panel with decorative surfaces on both faces. It is designed for interior applications requiring water resistance, fire performance, impact resistance and easy maintenance. Standard thicknesses include 3 mm, 5 mm, 10 mm and 12 mm, with a full range from 1.6 mm to 30 mm.

Composition

• Overlay: melamine-impregnated decorative paper (surface protective layer)
• Decorative layer: coloured decorative paper impregnated with melamine resin
• Core: multiple layers of kraft paper impregnated with phenolic resin

Key features

• High mechanical strength and impact resistance
• Waterproof and moisture resistant
• Fire-resistant properties (dependent on specification)
• Heat resistant and cigarette-burn resistant
• Wear and compression resistant
• Chemical resistance to acids and alkalis
• Antibacterial and mould resistant options
• Easy to clean and maintain

Available sizes

• 1220 x 1830 mm (4' x 6')
• 1220 x 2440 mm (4' x 8')
• 1220 x 3660 mm (4' x 12')
• 1300 x 2800 mm (4.3' x 9')
• 1300 x 3050 mm (4.3' x 10')
• 1530 x 1830 mm (5' x 6')
• 1530 x 3050 mm (5' x 10')
• 1530 x 3660 mm (5' x 12')
• 1830 x 1830 mm (6' x 6')
• 1830 x 2440 mm (6' x 8')
• 1830 x 3660 mm (6' x 12')

Thickness Typical offered thicknesses: 3 mm, 5 mm, 10 mm, 12 mm. Full range: 1.6 mm – 30 mm.

Colors & surface finishes

• Solid colours
• D8 series woodgrains / solids
• NT series woodgrains
• Metallic series
• T3 stone designs

Applications

• Kitchen cabinets and worktops
• Countertops and reception desks
• Wall panels and ceilings
• Toilet and shower partitions
• Lockers, compartments and furniture panels
• Office desks and partitions

Packing, delivery & fabrication Products are normally packed in plywood cases or on plywood pallets (sheets >5 mm usually palletised). Incoterms supported: EXW, FOB, CFR, CIF. The panels can be drilled, tapped, sanded, shaped and cut with standard carbide-tipped tools for customised fabrication.

Material analysis HPL is produced by layering melamine-impregnated decorative paper on both faces and multiple kraft paper plies impregnated with phenolic resin in the core, consolidated under high heat and pressure to form a compact panel with decorative faces.

Usage recommendations Suitable for indoor wet areas (toilet and shower partitions, washstand tops), kitchen cabinets, countertops and furniture where moisture, heat and impact resistance are required.

Technical specifications

• Brand: POLYBETT®
• Commercial name / model: POLYBETT® Formica HPL
• Material: Phenolic resin + kraft paper (decorative paper + melamine surface)
• Standard sizes: see list above (mm)
• Thickness range: 1.6 mm – 30 mm (common: 3 / 5 / 10 / 12 mm)
• Color/finish options: Solid, D8 woodgrains/solids, NT woodgrains, Metallic, T3 stones
• MOQ: 200 pieces
• Lead time: approx. 25 days (depends on quantity & specifications)
• Packing: plywood cases / plywood pallets (sheets >5 mm on pallets)
• Usability: can be cut, drilled, tapped and shaped with carbide tools
