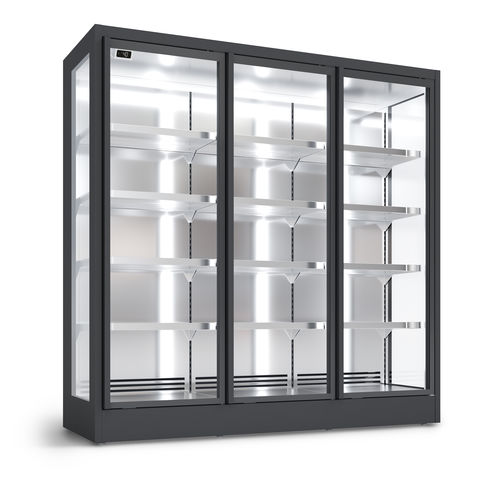

Wall-mounted refrigerated display case
for shopstainless steelcolored

Wall-mounted refrigerated display case - CIAM S.P.A. - for shop / stainless steel / colored
Wall-mounted refrigerated display case - CIAM S.P.A. - for shop / stainless steel / colored
Wall-mounted refrigerated display case - CIAM S.P.A. - for shop / stainless steel / colored - image - 2
Add to favorites
Compare this product
Go to the CIAM S.P.A. website for more information

Characteristics

Type
wall-mounted
Location
for shop
Finish
stainless steel, colored
Door type
with door
Number of shelves
with adjustable shelves
Lighting
with LED light
Applications
for cold cuts, for cheese, for wine
Options and accessories
positive temperature
Length

740 mm
(29 in)

Temperature range

Max.: 8 °C
(46.4 °F)

Min.: 2 °C
(35.6 °F)

Description

Description
Vertical refrigerated display for wall installation, designed for positive temperature preservation (+2/+8°C). Suitable for retail refrigerated product presentation; available with built‑in hermetic or remote condensing unit and configurable finishes.

Main features
  • Temperature range: +2/+8°C (positive)
  • Depth: 740 mm
  • Monolithic insulated pan with ecological polyurethane
  • Refrigeration unit located in the rear with forced air circulation across all display levels
  • Built‑in hermetic or remote condensing unit options
  • Zero type triple‑glazed doors with RAL 7021 serigraphy
  • Touch control unit and programmable automatic electric defrost
  • Adjustable satin‑steel shelves on rack and diffuse LED lighting 3000 K integrated in door frame


Technical specifications
  • Type: refrigerated vertical display (wall‑mounted)
  • Product family: Vertical Showcases
  • Brand: Ciam
  • Commercial name: Exclusive Zero
  • Depth: 740 mm
  • Temperature: +2/+8°C (positive)
  • Insulation: monolithic pan with ecological polyurethane
  • Interior finish: satin stainless steel
  • Exterior finish: thermolacquered steel RAL 7021 (powder‑coated)
  • Refrigeration: rear condenser with forced air circulation on all display levels
  • Condensing unit: hermetic built‑in or remote
  • Defrost: programmable electric automatic degrease
  • Control: tactile control unit
  • Doors: Zero type, triple glazing, RAL 7021 serigraphy
  • Shelves: satin steel, height adjustable on rack
  • Lighting: diffuse LED 3000 K integrated in door frame
  • Technical compartment and base: thermolacquered steel
  • Feet: height‑adjustable stainless steel


Applications
  • Supermarkets and grocery retail
  • Delicatessens and convenience stores
  • Food retail sections (dairy, prepared foods, beverages)
  • Any wall‑mounted refrigerated display needs in retail environments


Options & accessories
  • Remote condensing unit configuration
  • Alternative RAL colors and exterior finishes
  • Custom glass serigraphy and door configurations
  • Additional shelving types and load capacities
  • Alternative LED temperatures and lighting layouts
  • Remote monitoring and alarm systems
