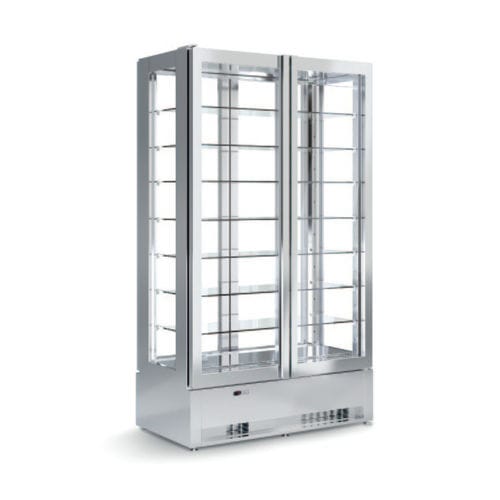

Food refrigerated cabinet

for chocolatefor pastry shopsfor ice cream

Product summary
The Brilliant refrigerated cabinets are fully glazed, designed for island use (center of the room) and captivate with sophistication, transparency and impressive sizing. Available in single- or double-door versions with opening on one side only or double-sided doors. Suitable for pastry, frozen desserts, pralines, deli, cured meats, wines and champagnes.

Product categories

• Fresh pastry
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A refrigerants
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic compressor
  • Operating temperature range: +16°C / +4°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (230 V / 1 ph / 60 Hz optional)
  • Energy class: E
• Chocolate
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic compressor
  • Operating temperature range: +16°C / +4°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (60 Hz optional)
  • Energy class: E
• Frozen pastry
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic / Semi-Hermetic
  • Operating temperature: down to -20°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (60 Hz optional)
  • Energy class: E
• Red wine
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic compressor
  • Recommended temperature: +16°C / +6°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (60 Hz optional)
  • Energy class: E
• White wine
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic compressor
  • Recommended temperature: +16°C / +6°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (60 Hz optional)
  • Energy class: E
• Bubbles
  • Ventilated
  • Automatic / Electrical defrosting
  • R290 (UC internal) / R452A
  • Humidity: N. 4 / 30 °C / U.R. 55%
  • Hermetic compressor
  • Recommended temperature: +16°C / +6°C
  • Lighting: 2700°K (optional) / 3000°K / 4000°K (optional)
  • Power supply: 230 V / 1 ph / 50 Hz (60 Hz optional)
  • Energy class: E

Design

• Fully glazed, sleek, modern aesthetic ideal for spectacular product display.
• Customization: interior and exterior finishes in RAL coatings or galvanic treatments; glass screen printing customizable; non-standard dimensions and custom solutions (e.g., refrigerated walls with stacked cabinets).
• Premium doors: triple pane glass extending over full front, two-door model available with no center mullion; magnetic seals built into the four vertical mullions; door opening up to 100°, hydraulic hinges with automatic controlled soft closing; premium doors standard heated for freezer versions and equipped with No-Fog film; heating for refrigerated units optional.
• Brilliant GT: fully glazed walls with no visible mullions, recessed/flush handles, mirrored or coated glass base front panel, adjustable interior glass shelves on self-supporting tubular rack, integrated No-Spot 3000°K LED strip lighting.
• Shelves: multiple shelf types available (Standard shelf, Shelf SVB01, SVB02, SVB03) to tailor the cabinet to applications.
• Two-sided version: available (premium doors both sides) for no-freezer units.
• Channeling in aesthetic continuity: cabinets can be placed side by side maintaining aesthetic continuity.
• Electronic lock (optional): key lock or electronic lock with RFID badge.

Technology

• Thermodynamics: evaporator placed in the lower tank; forced air circulation ensures even cold distribution across display shelves.
• Lighting: integrated 3000°K no-spot LED strips on the four internal uprights; dimmer optional to adjust intensity.
• Ciam Connect: online cloud connectivity for remote management of all functions, including alarm reporting and fault prevention.

Technical features

• Dual-Temp: two-door models can be supplied with dual-temperature differentiated system.
• Humidity control: available on request for refrigerated cabinets (suitable for fresh pastry and praline), compatible with standard touch control and Touch Pro panel.
• Touch control unit: elegant touch control standard on all refrigerated modules.
• Touch Pro panel: optional professional panel to fully exploit refrigerator performance.
• Condensate evaporator pan with electric heaters: available if floor drain connection is not possible.
• Electric defrosting: optional electric heating elements for faster defrost and ice prevention.
• Reverse cycle defrosting: standard on all freezer models (ultra-fast); condensing unit remote for these units.
• Electronic thermostatic valve: optional, especially for connections to refrigeration rack systems.
• QR code: product tag inside cabinet links to user and maintenance manuals and other technical content.
• Door and glazing details: premium triple-pane doors, No-Fog film, heated for freezers; hydraulic soft-closing hinges; door opening up to 100°; two-door no-center-mullion option.

Caractéristiques / spécifications techniques

• Model / family: Brilliant
• Use: island / center-of-room fully glazed vertical refrigerated cabinets
• Configurations: single-door, double-door, one-side opening, two-sided version (no-freezer)
• Applications: fresh pastry, frozen pastry, pralines, chocolate, deli, cured meats, red wine, white wine, bubbles, frozen desserts
• Refrigerants: R290 (internal condensing unit) or R452A
• Operating temperature examples: refrigerated units +16°C / +4°C; wine units +16°C / +6°C; frozen pastry down to -20°C
• Defrosting: Automatic / Electrical; ultra-fast reverse cycle defrosting for freezer models
• Humidity management: N.4 / 30 °C / U.R. 55% (option for specific uses)
• Compressors: Hermetic (some configurations semi-hermetic for frozen pastry)
• Lighting options: 2700°K (optional), 3000°K (standard in GT), 4000°K (optional); No-Spot LED strips integrated in uprights; dimmer optional
• Electrical supply: 230 V / 1 ph / 50 Hz (230 V / 1 ph / 60 Hz optional)
• Energy class: E
• Doors: triple pane glass, magnetic seals in vertical mullions, doors heated for freezer versions, No-Fog film, hydraulic soft-closing hinges, door opening up to 100°
• Brilliant GT specifics: fully glazed walls with no visible mullions, recessed handles, mirrored or coated glass front, adjustable interior glass shelves, No-Spot 3000°K LED strips
• Shelves: multiple optional shelves types (Standard, SVB01, SVB02, SVB03)
• Remote services / connectivity: Ciam Connect (cloud management, alarms, fault prevention)
• Optional equipment: dual-temp differentiation, humidity control, Touch Pro panel, condensate evaporator pan with heaters, electric defrost elements, electronic thermostatic valve, electronic (RFID) lock
• Identification: QR code inside cabinet linking to manuals and technical documents
