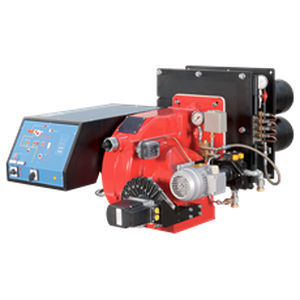

Boiler oil burner PG60...VS

This monobloc series made of a solid die-cast aluminium housing, represents all our experience made in the field of medium-large output burners. The oil pump works through a dedicated motor. The range runs from 200 kW to 4100 kW and are equipped with a by-passing nozzle to allow a ratio 1:3. The light oil output can be adjusted through a pressure regulator which effects on the return pipe line. All burners fit a control panel which includes the control box and a mimic diagram with lamps showing the sequential stages of burner operation. Burners "VS" series are equipped with multiple firing heads in order to achieve a shorter flame. Unlike other burners available on the market today, these burners have been designed with four combustion heads to produce a "soft " and compact flame , whereby the thermal energy contained in the flame is better distributed throughout the combustion chamber. This feature allows the use of the burner in very short combustion chamber boilers. Each system can be further distinguished by the equipment provided: electronic or mechanical adjustment O2 trim built-in or separately-mounted (wall or console) control panels
