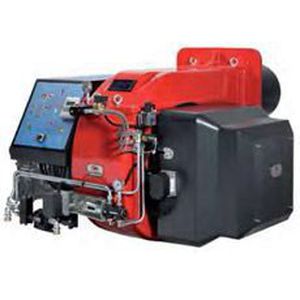

Boiler oil burner RG1030

This series of monoblock burners made of a solid die-cast aluminium housing, represents the outcome of our experience in the field of medium-large capacity burners. This version of burners features a centrifugal air fan activated by a three phase motor, while the oil pump works through a dedicated motor. This range of the series MILLE has a capacity from 2.550 kW to 13.000 kW. Both series are equipped with a by-passing nozzle that allows a modulating ratio of 1:3. The light oil output can be adjusted through a pressure regulator which has effects on the return pipe line. All burners have a control panel which includes the control box and the regulators of temperature and pressure. Furthermore they are equipped with a mimic diagram with lamps showing the sequential stages of the burner operation.
