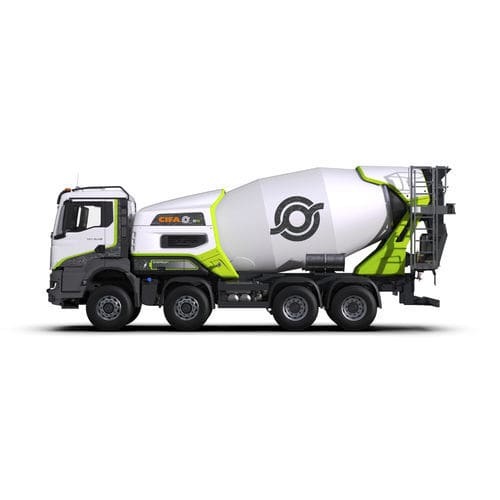

Electric mixer truck E9

hybridfor concreteplug-in hybrid

ENERGYA series is the first plug-in hybrid truck mixer. An innovative truck mixer that offer many advantages: less consumption, less noise, less pollution, more movement freedom. ENERGYA is based on this innovative system of drum movement that combines traditional technology with electric technology; drum movement is in fact guaranteed by an electrical induction engine that receives energy from a lithium ion battery. Plug-in hybrid means that batteries can be recharged both from the electrical network and through the generator onboard. ENERGYA is also equipped with KERS (Kinetic Energy Recovery System), the system that during the slow down phase of the vehicle allows to recover energy. • Basic frame, straight or shaped, made profile according to truck manufacturer specifications • Drum design according to DIN459 norm with large loading volume with high water line • Drum and blades made of 450 HB steel • Wear protected blades • Two rollers diam. 250 mm with special off road support, completely bolted for an easy maintenance and adjusting • Pressurized aluminum water tank capacity 300 I • Two washing nozzles (one at ground level by quick joint and one on ladder platform) • Concrete manometer for concrete consinstency shown in displays • Two light additional chutes in iron-plastic material, with supports for their fixing • Special design charging hopper and discharging hopper and chute for a fast and smooth charging and discharging, completely bolted for a better and simple maintenance • Wear plates on charging hopper and discharging chute • Discharging chute driven by manual cylinder • No. 2 quick joint water fillers on sides of front supporting frame
