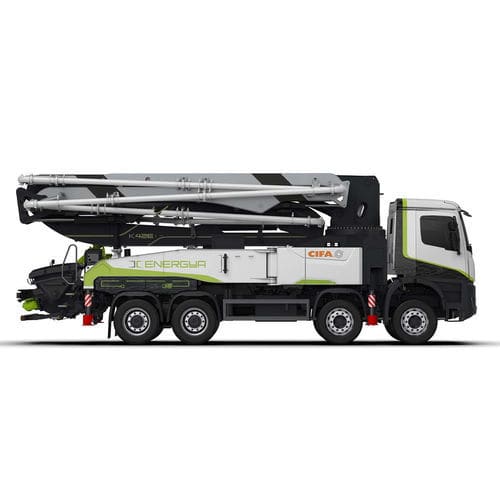

Mobile concrete pump K42E

truck-mounted

Overview
The K42E is part of CIFA's Energya electric range of truck-mounted concrete pumps. It provides the output of a conventional truck pump while using battery-electric (BEE) technology to reduce on-site fuel consumption, emissions and noise. The 5-section boom extends up to 42 m; the last two sections are manufactured in carbon fibre (CARBOTECH) to lower weight without compromising structural strength and reliability.

Key highlights

• 30 Ah battery pack powering two electric motors: one for the hydraulic pump, boom movement and outriggers; one for the pumping unit and auxiliary services
• Capability to connect to a three-phase site power supply for continuous operation with the truck engine switched off
• Option to operate via the truck power take-off (PTO) using the vehicle engine when no external power source is available

Basic product details

• Product family: Energya (electric range)
• Type: Hybrid / Electric truck-mounted concrete pump
• Boom sections: 5

Table (selected technical entries)
Pumping unit: HP1608EC
Management system: Smartronic
Folding system: RZ
Minimum boom opening height: 8.3 m

Characteristics / technical specifications

• Boom length: up to 42 m (5 sections)
• Boom material: last two sections in carbon fibre (CARBOTECH)
• Boom sections: 5
• Pumping unit: HP1608EC
• Management system: Smartronic
• Folding system: RZ
• Minimum boom opening height: 8.3 m
• Battery pack: 30 Ah battery powering two electric motors
• Site power option: connection to three-phase electrical outlet for operation with truck engine off
• Fallback option: operation via truck PTO using vehicle engine if no external power is available
