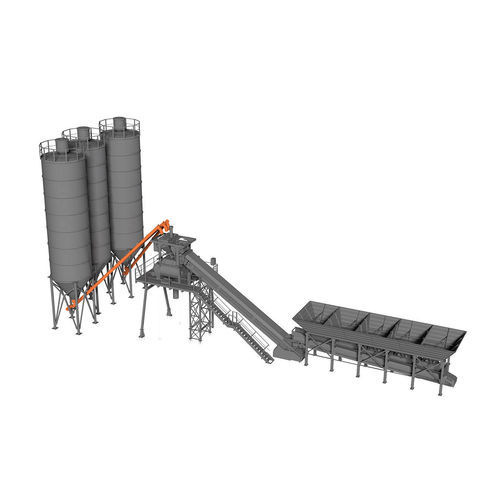

Semi-mobile concrete mixing plant FIVETECH DIAMOND

automatic

Overview
FIVETECH DIAMOND is a series of semi-mobile wet concrete batching plants designed for capacities between 50 and 180 m3/h. The bolted modular structure optimises transportability and simplifies on-site assembly. Modular aggregate storage (typically 4–6 compartments) is combined with automatic loading for efficient materials handling. Each configuration is equipped with a horizontal twin-shaft mixer and controlled by the FIVETRONIC system for full process automation.

Key product facts

• Type: semi-mobile
• Concrete type: wet
• Hourly rated capacity: 50–180 m3/h
• Aggregate storage: 65–260 m3
• Horizontal twin-shaft mixer range: 1.5–6.75 m3 (batch capacity 1.0–4.5 m3)

Highlights

• Bolted modular structure for easy transport and rapid assembly
• Modular aggregate bins (4–6 compartments) with automatic loading
• Heavy-duty horizontal twin-shaft mixers for consistent mixing performance and simplified maintenance
• Full automation and fine mixing control via FIVETRONIC
• Configurable cement silos (up to 4) and adaptable discharge height

Table - Models and main specs
Model | Hourly rated capacity (m3/h) | Capacity per batch (m3) | Aggregate bins (nr) | Aggregate bins capacity (m3) | Mixer (Horizontal Twin shaft) model | Discharge height (m) | Cement silos (nr) | Control
Fivetech 1500 D | 50-55 | 1.0 | 4-6 | 65-200 | 1502 | 4.2 | up to 4 | 3.5
Fivetech 2500 D | 60-70 | 1.7 | 4-6 | 65-200 | 2502 | 4.2 | up to 4 | 3.5
Fivetech 4000 D | 90-100 | 2.5 | 4-6 | 65-200 | 4002 | 4.2 | up to 4 | 6.3
Fivetech 5000 D | 130-135 | 3.3 | 4-6 | 65-200 | 5001 | 4.2 | up to 4 | 6.3
Fivetech 7000 D | 160-180 | 4.5 | 4-6 | 52-260 | 7001 | 4.2 | up to 4 | 8.0

Description details
The FIVETECH DIAMOND series features a bolted modular frame to reduce transport volume and simplify assembly on site. Aggregate storage is modular (typically 4–6 bins) and can be equipped with automatic loading systems to streamline materials handling. The series uses leading-edge horizontal twin-shaft mixers that combine heavy-duty construction with easy maintenance access. Mixing operations are fully automated and finely tuned by the FIVETRONIC control system, enabling consistent batch quality across the 50–180 m3/h capacity range. Batch sizes vary by model from 1.0 to 4.5 m3.

Caractéristiques / spécifications techniques

• Series: FIVETECH DIAMOND
• Manufacturer / Brand: CIFA
• Type: semi-mobile batching plant
• Concrete type: wet concrete
• Hourly rated capacity (series range): 50–180 m3/h
• Capacity per batch (models): 1.0 / 1.7 / 2.5 / 3.3 / 4.5 m3
• Aggregate storage (range): 65–260 m3
• Aggregate bins: typically 4–6 compartments
• Aggregate bins capacity (by model): 65–200 m3 (most models), up to 52–260 m3 (largest model)
• Mixer type: horizontal twin-shaft (double-axis)
• Mixer model numbers: 1502, 2502, 4002, 5001, 7001
• Discharge height: 4.2 m (listed models)
• Cement silos: up to 4 (configurable)
• Control / footprint figures (per model): 3.5 / 3.5 / 6.3 / 6.3 / 8.0
• Design features: bolted modular structure, modular aggregate storage, automatic loading systems
• Automation: FIVETRONIC system for detailed mixing process control
