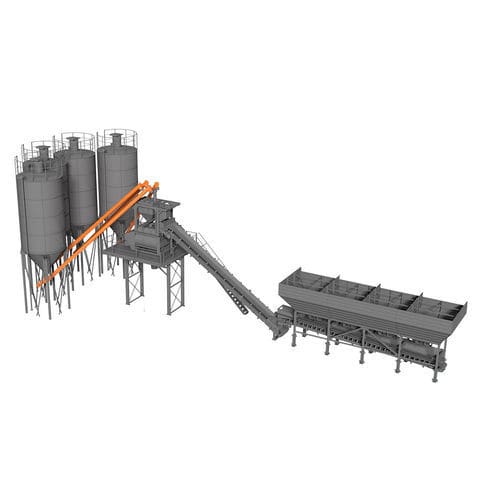

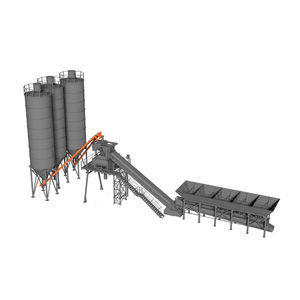

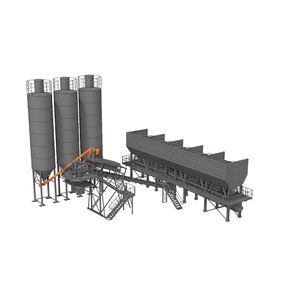

Container concrete mixing plant FIVETECH ZIRCON

semi-mobile

Overview
Type: semi-mobile
Concrete type: wet
Maximum hourly production: 45 - 120 m³/h
Aggregate storage: 70 - 160 m³

Highlights

• Transportable with standard trucks and containers
• Production capacity from 45 to 120 m³/h covering multiple site needs
• Aggregate storage capacity from 70 to 160 m³ with 4–5 bins depending on configuration
• Compact, modular design for fast installation and relocation
• Complete operational control from aggregate dosing to final discharge

Description
The CIFA Fivetech Zircon series delivers a semi-mobile wet concrete batching solution designed for rapid deployment and versatile use on construction and precast sites. Four models provide hourly capacities from 45 to 120 m³/h with a modular layout that eases transport, assembly and maintenance. The horizontal twin-shaft mixer family ensures consistent, high-quality mixing across a wide range of aggregates and mix designs.

Models table
Model | Hourly rated capacity (m³/h) | Capacity per batch (m³) | Aggregate bins | Aggregate bins capacity (m³) | Mixer model | Discharge height (m) | Cement silos | Control cabin (m²)
Fivetech 1500 Z | 45-50 | 1.0 | 4-5 | 70-160 | 1502 | 4.2 | up to 4 | 3.5
Fivetech 2500 Z | 60 | 1.7 | 4-5 | 70-160 | 2502 | 4.2 | up to 4 | 3.5
Fivetech 4000 Z | 90 | 2.5 | 4-5 | 70-160 | 4002 | 4.2 | up to 4 | 4.30
Fivetech 5000 Z | 120 | 3.3 | 4-5 | 70-160 | 5001 | 4.2 | up to 4 | 4.30

Technical specifications

• Brand: CIFA
• Type: Semi mobile
• Concrete type: Wet
• Maximum hourly production: 45 - 120 m³/h
• Aggregate storage capacity: 70 - 160 m³
• Horizontal twin shaft mixer sizes: 1.5 - 5 m³ (mixer family)
• Available models: Fivetech 1500 Z, Fivetech 2500 Z, Fivetech 4000 Z, Fivetech 5000 Z
• Hourly rated capacity by model: 1500 Z = 45-50 m³/h; 2500 Z = 60 m³/h; 4000 Z = 90 m³/h; 5000 Z = 120 m³/h
• Capacity per batch by model: 1500 Z = 1.0 m³; 2500 Z = 1.7 m³; 4000 Z = 2.5 m³; 5000 Z = 3.3 m³
• Aggregate bins: 4-5 (depending on configuration)
• Mixer models: 1502 (1500 Z), 2502 (2500 Z), 4002 (4000 Z), 5001 (5000 Z)
• Discharge height: 4.2 m (all models)
• Cement silos: up to 4
• Control cabin area: 1500/2500 Z = 3.5 m²; 4000/5000 Z = 4.30 m²
