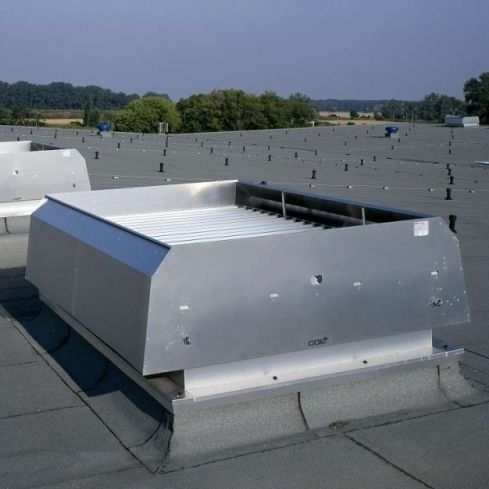

Aluminum smoke vent WCO

smoke and heat extractorfor roof

WCO can provide extract ventilation as well as allow the entry of natural daylight for most kinds of industrial and commercial buildings. WCO is predominantly a Climate Control product, as it’s top section provides maximum ventilation. WCO can also be used for emergency smoke extract ventilation, although it is not certified as a smoke ventilator. Two controllable side dampers provide day-to-day ventilation when it is raining. A wide range of applications - WCO can provide both day to day and smoke control ventilation, although it is not certified as a smoke ventilator. Polycarbonate versions allow the entry of natural daylight. There are pneumatic, electric or hand controls and a wide range of louvre types, accessories and finishes. Various control options - The pneumatic control can be extended to incorporate a rain sensor, so that when it rains the top louvres automatically close and simultaneously the side louvres open. If used as a smoke ventilator, activation is either by a local thermal fuse which opens the unit at a pre-selected temperature, or by the controls responding to an external release signal. (Please note that it is not certified as a smoke ventilator to EN 12101-2). High performance - WCO is aerodynamically efficient and has a high resistance to weather. Easy to install - WCO is delivered fully assembled to site and may be installed at any angle from the horizontal to 45º. It has a wide range of base profiles to suit all sheeting, curb or glazing applications. Durable - WCO is manufactured from tough, corrosion resistant aluminium alloy, grade 3005 in accordance with EN 573-3, with stainless steel fixings.
