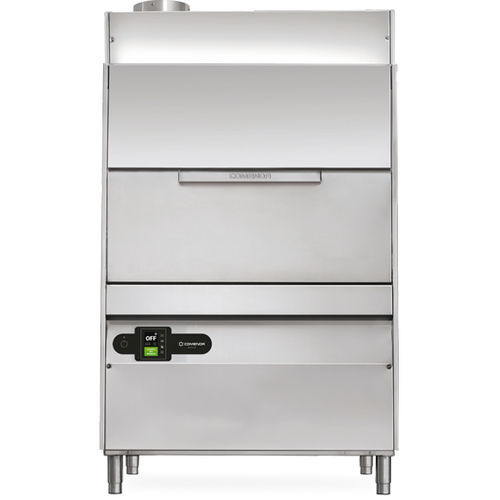

Granules Pot & Utensils Washers. Double skin insulated execution. Built- in rinse-aid and detergent dosing pumps, integrated RCD - Rinse Control Device and CRC - Heat Recovery System.
DURABILITY
Double wall stainless steel AISI 304 execution;
Thermo-acustic insulation;
Perfect Guaranteed mix between water and granules before entrance in the pump.It reduce
the mechanical friction between granules and the pump’s components;
Wash tanks in AISI 316.
FLEXIBILITY
Touch Screen control panel for temperatures and parameters monitoring.
Multi-language menù.
12 washing cycles. 6 with the combination of water, granules and detergent.
Integrated ventilation system to reduce the steam released in the washing area.
Easy access to the electrical panel.
The split door becomes a working surface during loading/unloading operations.
GRE 1005 model specifically designed for sanitizing 8 GN 1/1 tray
Double vertical removable washing arms with debossed anti-drip nozzles.
Rotating support for the basket to optimize the mechanical action during the washing process.
Granules collection tank.
Vertically removable double wash arm set.
Additional cycle with intensive rotation phase before and after the rinse cycle to promote a
consistent reduction in water consumption and facilitate drying at the end of the cycle.
EXTERNAL SIZE 1200x1010x2260 mm
CLEARANCE 1535x2305 mm
OVERALL SIZE 850 mm
RACK SIZE 850x350 mm
ELECTRICAL SUPPLY 400V/3N/50Hz
WASH PROGRAM LENGHT 120/240/360/480/600/720 "
RINSE WATER CONSUMPTION 5 l
TANK HEATER ELEMENT 9 kW
BOILER HEATER 9 kW
TANK SIZE 120 l
WASH PUMP 3,80 kW
INSTALLED LOAD 12,98 kW
