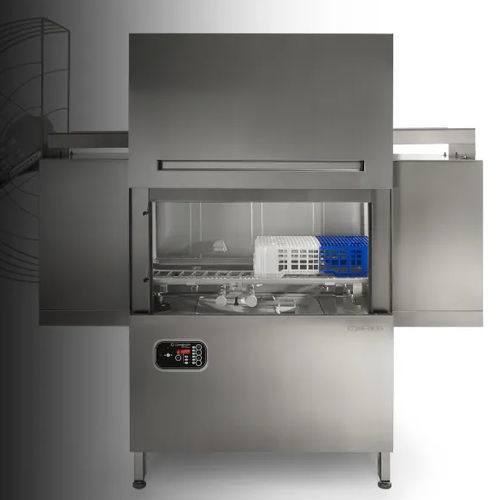

Conveyor dishwasher ACC

for commercial kitchenfree-standing

Overview
Comenda ACC XL Series crate and tray washers are offered in four configurable layouts to deliver thorough sanitization with controlled water consumption. Models are designed for conveyor feeding and can be equipped with a height extension to process taller items.

Models and configurations

• ACC1 XL
  • 400 mm inlet splash shield
  • 1150 mm wash and rinse module
  • 400 mm exit splash shield
  • Up to 200 crates/h
  • Up to 350 GN 1/1/h
• ACC1 P9 XL
  • 400 mm inlet splash shield
  • 900 mm prewash module
  • 1150 mm wash and rinse module
  • 400 mm exit splash shield
  • Up to 300 crates/h
  • Up to 500 GN 1/1/h
• ACC2 XL (standard)
  • 400 mm inlet splash shield
  • 1150 mm wash module
  • 400 mm EcoRinse module
  • 400 mm exit splash shield
  • Up to 250 crates/h
  • Up to 450 GN 1/1/h
• ACC2 XL (with prewash)
  • 400 mm inlet splash shield
  • 900 mm prewash module
  • 1150 mm wash module
  • 400 mm EcoRinse module
  • 400 mm exit splash shield
  • Up to 350 crates/h
  • Up to 600 GN 1/1/h

Flexibility and benefits
The ACC XL Series simplifies daily operations and guarantees deep cleaning of crates, containers, trays and kitchen utensils while keeping the washing area dry and safe. The extra-large washing chamber and optional height extension make it suitable for a wide range of container sizes encountered in food processing and industrial kitchens.

Technical specifications

• Series: ACC XL Series
• Extra-large washing chamber: 530 × 430 mm
• Optional height extension: up to 700 mm
• Inlet/exit splash shields: 400 mm (standard)
• Prewash module option: 900 mm (P9)
• Wash module lengths: 1150 mm (wash / wash & rinse)
• EcoRinse module: 400 mm (available on ACC2 configurations)
• Capacity (model-dependent): from up to 200 crates/h to up to 350 crates/h; GN 1/1 handling from up to 350 GN 1/1/h to up to 600 GN 1/1/h
• Applications: crates, containers, trays and kitchen utensils; designed for maximum hygiene and water efficiency
