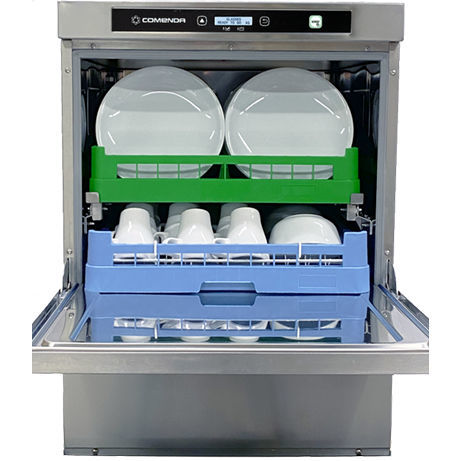

Front-loading dishwasher HF45 R DR

commercialintegrated

Dishwasher Multipower double skin execution with built-in HR drain pump, detergent and rinse aid dispensers and Wris®2+ Wash and Rinse Integrated System and RCD. Double Rack Execution. DURABILITY AISI 304 stainless steel execution; Double skin execution; Double skin insulated counterbalanced door; Stainless steel rear panelling. FLEXIBILITY Multipower: 230V ~ 50Hz - 230V 3 ~ 50Hz - 400V 3N ~ 50Hz; Soft Start: The cycle starts slowly and gradually builds to full speed to prevent the dislodging of light items like glassware and crockery and consequently breakage; Fast programming of the control panel upon installation to establish specific times, temperatures and detergent requirements; Built-in detergent, rinse-aid dosing pumps and drain pump; Door activated cycle start and manual cycle start. HYGIENE The RCD system maintains constant water pressure and temperature throughout operations. The highest levels of hygiene and sanitisation are achieved through high washing and rinsing temperatures along with contact times in line with the DIN10534 standards; Single piece deep drawn tank; Self-cleaning cycle at unit switch-off; EXTERNAL SIZE 600x600x820 mm CLEARANCE 400 (140 x 240) mm OVERALL SIZE 1040 mm RACK SIZE 2x 500x500 mm WASH PROGRAM LENGHT 90/90/120/240/240 sec RINSE WATER CONSUMPTION 4 l TANK HEATER ELEMENT 1 kW BOOSTER HEATER ELEMENT 7 kW TANK SIZE 10 l WASH PUMP 0,70 kW INSTALLED LOAD 7,70 kW NOISE 61 dB(A) WEIGHT 72 kg MAX OUTPUT - WARM WATER CONNECTION (55 C°) 71/71/60/30/30 racks/h MAX OUTPUT - COLD WATER CONNECTION (15 C°) 36/36/36/30/30 racks/h
